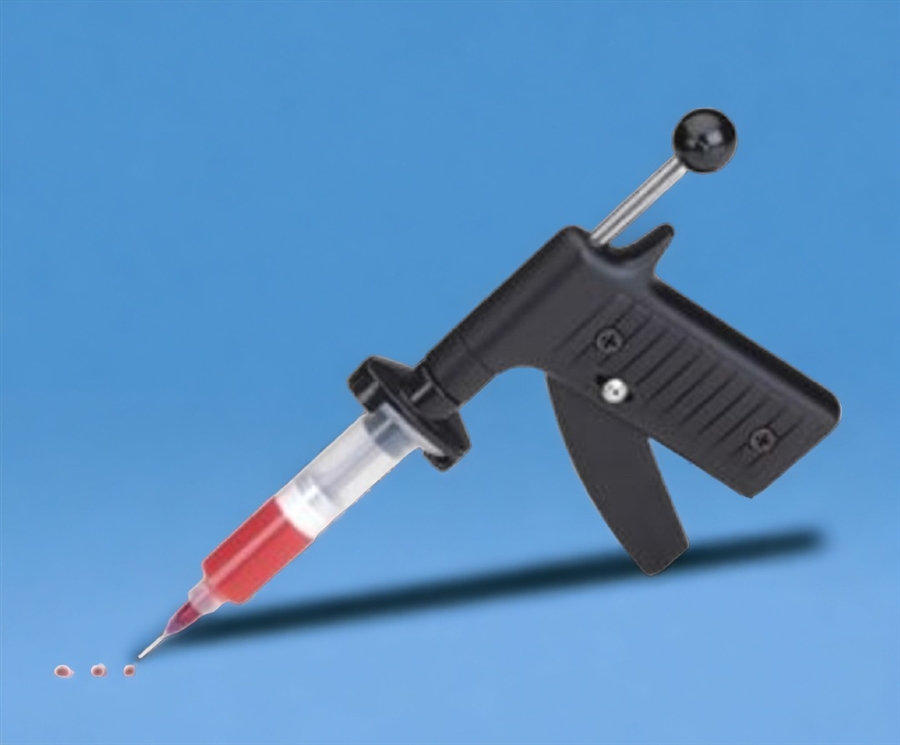

30cc Metal Manual Syringe Gun with Kit DG30-KIT
Product Code: MSG30-KIT
Price: £265.00
Description
Syringe Gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. A cost effective quality made syringe dispensing gun for use with standard 55cc/ 55ml size syringe barrels. Ideal for low volume production, re-work or repair work.
Syringe Guns offer a low cost dispensing solution for most medium to high viscosity pastes, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser for applying most fluids. A 10:1 ratio leverage for effortless trigger movement. The rod moves a fixed distance using the selector. This gun can make repeat deposits.
Push the button to release plunger rod. Simple bayonet twist on/ twist off barrel attachment. Ideal for dots or beads of solder paste, solder flux, RTV, silicones, sealants, gels, grease, PVA glue and compounds. Each Syringe Gun kit includes the 30ml manual hand gun, (20) 30ml dispensing reservoir with 30ml pistons, (20) storage end caps, (20) tip caps, (50) assorted dispensing tips.
Specifications:
Weight: 0.3kg
Gun Length: 175.0mm
Maximum Thrust: 2.5kN
Handle Material: Coated Steel
Frame Material: Coated Steel
Barrel Adapter: High Density Acetal
Tool Component Approvals: REACH
Cartridge Capacity: 30mL (30cc)
Mechanical Advantage Ratio: 10:1
Viscosity: Low/Medium/High
Standard Colour: Black
Warranty: 1 Year
Commodity Code: 84798997
Origin: USA
Barrels are attached to the syringe gun using wide flanges. This ensures the barrel does not break under constant use or hand pressure.
- Includes full component kit
- Easy hand lever leverage
- Controlled deposit or bead
- Lightweight robust construction
- Quick syringe attachment
- Low cost dispensing solution
The guns are robust and handle most liquids and pastes dispensed from them. However, it is important to press the small release button at the top of the gun before pulling the rod back when changing syringe barrels. O-rings can become worn or covered in glue so they are available to order from stock. The gun is supplied with 1 spare o-ring in the pack. For future replacement, select the 30/55cc size in EPR or Fluorocarbon Rubber. Please contact us if replacement rods are required.
20 x 30cc clear luer lock syringe barrels
20 x 30/55cc white wiper pistons
20 x 30/55cc barrel end cap seals
20 x barrel tip cap seals black
5 x smooth flow tapered tip 14 gauge olive
5 x smooth flow tapered tip 16 gauge grey
5 x smooth flow tapered tip 18 gauge green
5 x smooth flow tapered tip 20 gauge pink
5 x smooth flow tapered tip 22 gauge blue
5 x precision 1/2" tip 14 gauge olive
5 x precision 1/2" tip 15 gauge amber
5 x precision 1/2" tip 18 gauge green
5 x precision 1/2" tip 20 gauge pink
5 x precision 1/2" tip 21 gauge purple
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Includes syringe, piston, caps and tip
- Easy hand lever leverage
- Controlled deposit or bead
- Lightweight robust construction
- Quick syringe attachment
- Low cost dispensing solution
