Description

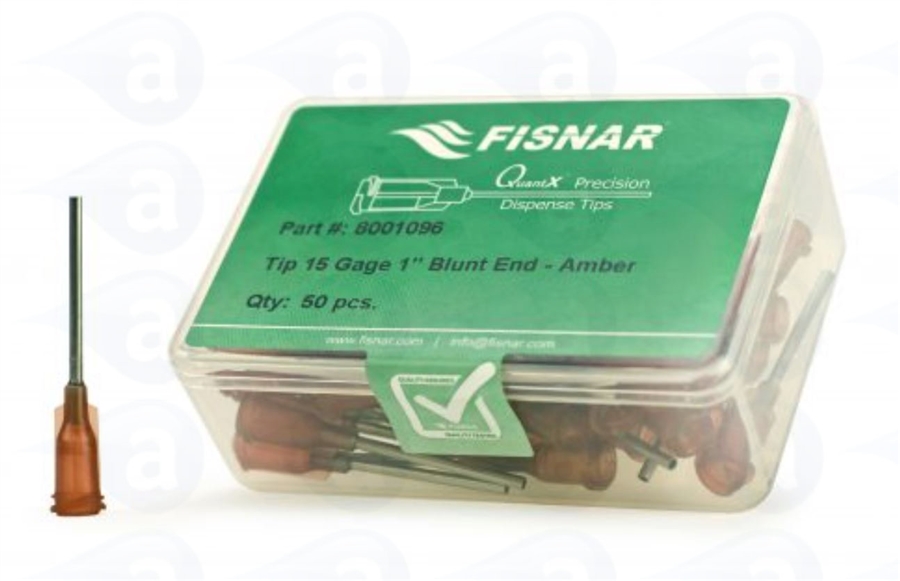

Fisnar straight blunt end dispensing tips are designed with molded hubs and stainless steel needles. To optimise dispensing results, these industrial performance precision tips are available in full luer lock thread for high viscosity materials and less costly ear type luer lock fastenings for less viscose liquid dispensing.
Precision needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Use these tips for applying most liquids for high precision controlled dispensing.
Tips are colour coded for gauge size. The tip features a tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids and pastes.
Material: Polypropylene/ Stainless Steel
Hub Colour: Amber
Hub
ID: 0.054" - 1.370 mm
Hub OD: 0.065" - 1.650 mm
Tube Length: 1.00" - 25.40 mm
Details: Industrial grade, Silicone Free
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids - from watery
liquids, solvents, primers and activators through to thick pastes, sealants,
silicones, gels and epoxies.
Features
- Precision burr free tubing
- 1.0" tube lengths
- Silicone free safe plastics
- Safe for use up to 100 psi
- Double helix luer lock colour coded hubs
- UV filter plastic hubs
- For all fluids, adhesives and solvents
