310ml Cartridge Retainer Kit CR300
Product Code: CR300
Price: £300.00
Description
Cartridge retainers can be adapted to work with our full range of cartridges to provide a pressured feed of adhesives, liquids and pastes when dispensing. The CR300 cartridge retainer has been developed with a new optimised seal design, guaranteeing greater seal performance and durability by sealing directly onto the inside of the inserted cartridge.
Fully compatible to accommodate all 1/10 gallon (310ml) size silicone and sealant type cartridges and both plastic and metal caulking type (300/310ml), this high-grade anodised alloy retainer and cap ensures a safe and comfortable dispensing pressure of up to 100psi (6.9Bar).

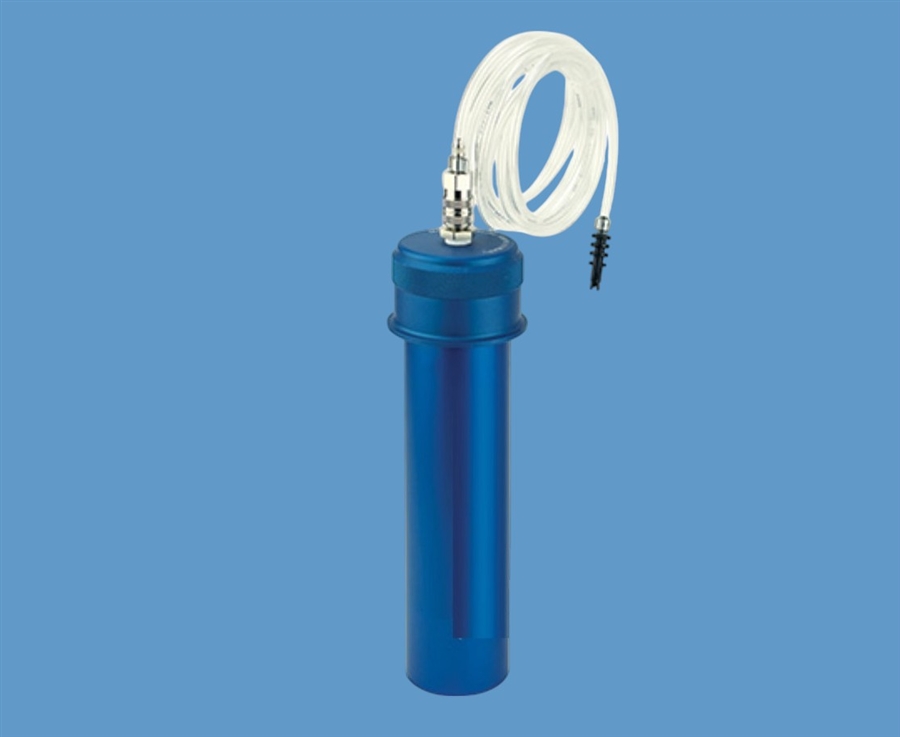

The CR300 is incredibly versatile and can be used as a pressurised fluid reservoir system when working in conjunction with a dispense valve. The CR300 has a single shut-off, quick release air input connector for ensuring safe and easy disconnection when changing fluid cartridges. This air input connector eliminates the need for an isolating compressed air feed, every time the fluid cartridge is changed, thus allowing for quicker changeover times. Image 2 shows retainer with optional (ordered separately) 560549U bench stand.
Part ID: CR300
Materials: Nylon/ Polypropylene/ Aluminium
Colour: Blue
Maximum Pressure: 100 PSI (7 BAR)
Outer Diameter: 56mm
Inner Diameter: 52mm
Length: 220mm
Warranty: 1 Year
Commodity Code: 90289090
Brand: Fisnar
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Robust construction
- Compatible with all 310ml (1/10 gallon) cartridges
- Use with our cartridges and plungers part TS110CKIT or with filled sealant caulk tubes
- Resistant to aggressive fluids and solvents
- Safe for use to 50 psi pressure
- Supplied in sealed packaging ready to use
- Includes air hose and fittings to connect to any pneumatic dispenser
