Description
3 axis version allows head indexing in X, Y and Z axis.

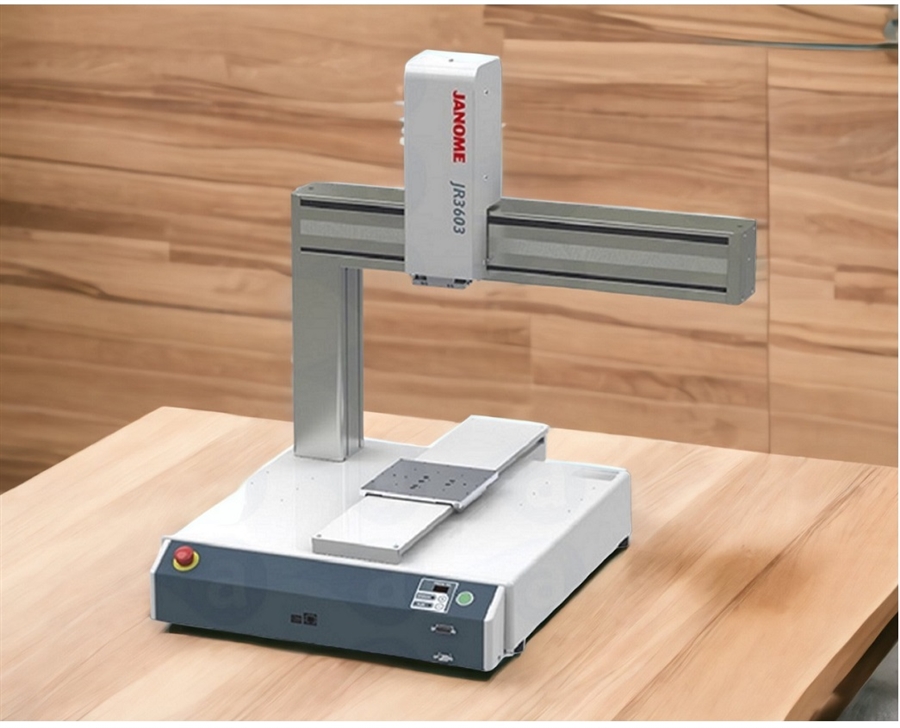

With its large working area of 620 x 510 mm, the JR3600N dispensing robot takes less than 787 mm2 workspace. The JR3600N robot has an opening on the side for easy handling larger objects in and around the work area.
Cartesian dosing robots provided by ADL are used to interpolate lines and curves automatically in all axes. The JR3604N version is equipped with a fourth axis of rotation for a 3D displacement.
The programming software, easy to use, allows you to create programs quickly thanks to its support system. Within few minutes, the device is ready for use. The system is equipped with an I / O signal interface (16 x inputs / 16 x outputs) to allow you to control external systems.
ADL offers a complete range of dosing robots to respond to your more specific demands in terms of positioning and dispensing. These dosing robots operate with syringes and valve systems, to a working area from 200 mm x 200 mm to 510mm x 620mm. So these robots are the ideal solution for optimizing precision works and reducing production costs.
Designed to be easy to program, a software has been specifically created to make the handling of the device accessible by avoiding the use of a complex programming language. In addition, the interface is programmable via a control unit or PC (Dispensing software included).
The Cartesian robot tables have robust and reliable units in aluminum ensuring the rigidity whatever operation is performed. They offer a wide range of work areas for a small obstruction. These devices are ideal for autonomous operations and can easily be integrated on automated assembly lines.
Please contact us for pricing and lead time.
- Optical encoders of displacement control
- Auto shutdown in case of error detection
- No time wasted and maximization of the productivity
- Heavy-duty aluminum structure
- Memory capacity : 30,000 points or 255 programs
- Modular RS232 C interface to connect to a PC, RS-422 port for learning case and I / O system
Operating range: X axis/510mm Y axis/600mm Z axis/150mm
Load: Worktable 11 kg - Tool 6kg
Speed PTP: 8-800 mm/sec X & Y, 3.2-320mm/sec Z
Speed CP: 0.1-800mm/sec XY & 0.1-250mm/sec Z
Repeatability: +/- 0.01mm per axis
Resolution: XY & Z axes +/- 0.01mm
Data memory capacity: 255 programs 30000 points
Drive system: 5-phase stepping motor
I/O signals: 16 input & 16 output signals (24 I/O Option)
Dimensions: WxDxH 788 x 731 x 800mm
Weight: 44 kg
Meets or exceeds: CE
Warranty: 1 Year
|
What's Included:
1 x Base Robot with power cord
1 x LCD Teach Pendant with cable
1 x CE Compliance kit - start/ stop box
1 x 30/55cc Syringe Mounting bracket/slide
1 x TS250 Digital Pneumatic controller
1 x TS250 airline kit/ power kit
1 x I/O Cable to controller
1 x CD-ROM with manuals and user guides
1 x Syringe Kit (30cc & 55cc size)
1 x Tip Kit (145 assorted tips)
|
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for form-in-place gaskets, adhesives, potting, coating and filling
- High resolution 0.01mm
- Performs continuous path and point-to-point motions
- Quick fluid-purge button located on front panel
- Software tip alignment routine for quick program offsets when changing dispensing tips
- USB connector allows system updates and program interchange between robots
- Step-and-repeat functions _ program one object only for multiple identical objects
- On board 255 programs, 30,000 point memory capacity
- Available without Teach Pendant for multiple installations
- 1 Year Warranty - CE Certified
