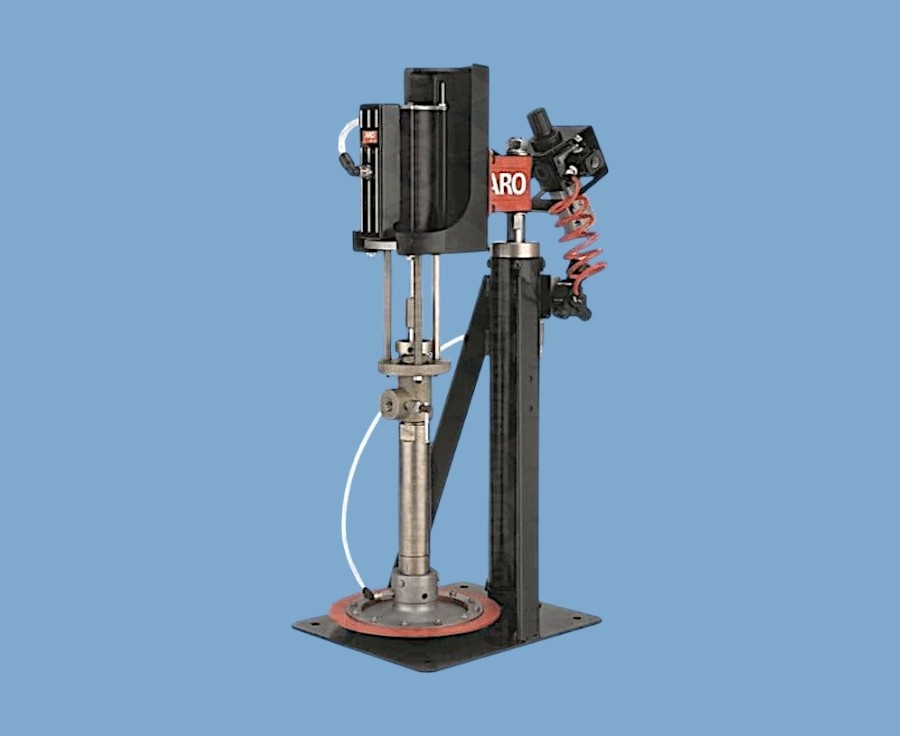

Extrusion Pump 5 Gal 43:1 Ratio TS1400-CSS43-5G
Product Code: TS1400-CSS43-5G
Price: £10,506.00
Description
Extrusion pump is a best tool use to feed fluid from bulk containers such as 5-gallon pail or 55-gallon drum to a dispensing valve. The TS1400 Series pumps are workhorses - able to deliver viscous adhesives, sealants, caulking and heavy lubricants to the application point at the desired pressure and flow rate.
Offered in multiple configurations, including single-post, two-post and heavy-duty two-post, our piston pump packages ensure you have the right solutions for your applications. Stainless Steel version.
- Coating
The abrasive nature of paints and coatings can quickly break down weaker components. Thats why systems that handle the transfer of high-solids materials trust TS1400 series pumps to stand up to the pressure.
- Lubrications
Lubricant applications demand a pump that can dispense oils and greases accurately and without wasting a drop. Thats why TS1400 pumps are at the heart of the most vital systems.
- Adhesive and sealant applications
When your application deals with dispensing highly abrasive materials, you need a system with strength that lasts. Strength that only TS1400 series pumps can deliver.
- Coating
The abrasive nature of paints and coatings can quickly break down weaker components. Thats why systems that handle the transfer of high-solids materials trust TS1400 series pumps to stand up to the pressure.
- Lubrications
Lubricant applications demand a pump that can dispense oils and greases accurately and without wasting a drop. Thats why TS1400 pumps are at the heart of the most vital systems.
- Adhesive and sealant applications
When your application deals with dispensing highly abrasive materials, you need a system with strength that lasts. Strength that only TS1400 series pumps can deliver.
Features
- ACCESSORIES
Ratio 22:1
Stroke (double acting) 6" (15.24 cm)
Material Inlet 1” NPT (F)
Material Outlet 1” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 150 (2 - 10.3)
Fluid Pressure Range psi (bar) 660 - 3412 (46 - 235)
Max Cycles/Minute 60
Displacement/Cycle cu in (cm3) 7.5 (122.9)
Cycles/gal (L) 30.9 (8.1)
Flow @ 60 Cycles gpm (L/min) 1.9 (7.2)
Noise Level @ 60 psi dBA 86.5
Weight* lb (kg) 42.9 (19.5)
Container Suitability Remote Mounting
*Estimate Weight -Contact Technical Support for exact weight.
ADAPTER
TSD931-102 Adapter, 3/8" NPT (M) x 1/2" NPT (F), 6000 psi max, zinc plated steel
TSD931-103 Adapter, 1/2" (M) x 3/8" (M) SST
FLUID REGULATOR
TSD500-60 Fluid Regulator, 3/8" Port Size, Carbon Steel Base, 3,000 psi inlet, 400 - 1,250 psi range
TSD500-61 Fluid Regulator, 3/8" Port Size, Stainless Steel Base, 3,000 psi inlet, 400 - 1,250 psi range
MATERIAL HOSE
TSD1099-30 RTV/Moisture Lok Hose 1/2" NPT (M) x 1/2" NPT (M), 10' length, 2000 psi max
SWIVEL
TSD931-104 Swivel, 1/2" (F) x 3/8" (M) 10,000 psi Max Pressure
