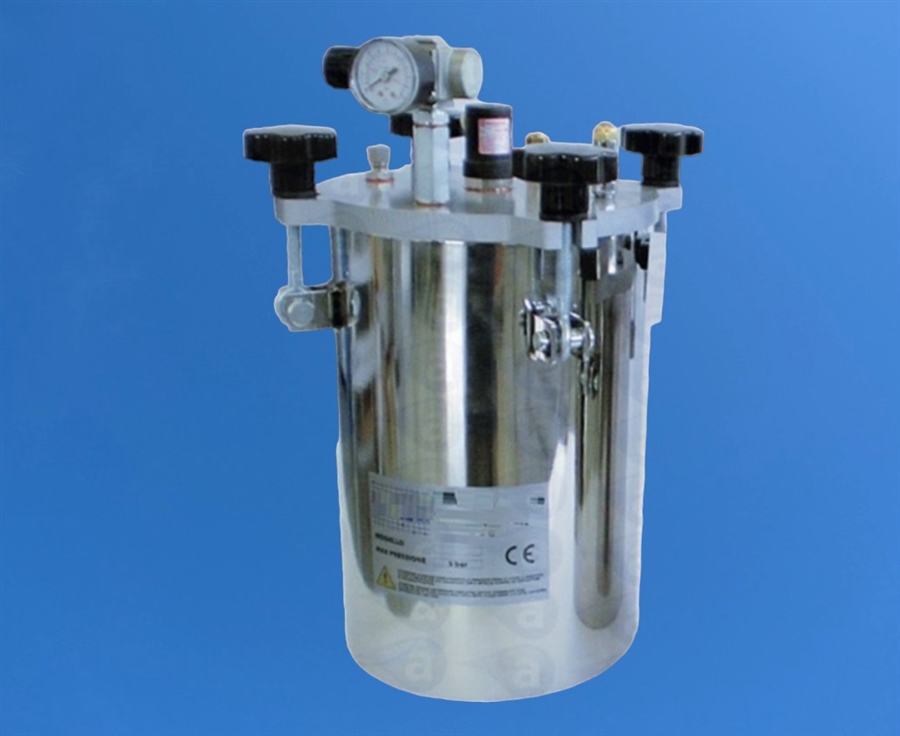

16 Litre Pressure Pot 0-45 PSI TS2216
Product Code: TS2216
Price: £1,450.00
Description
High quality stainless steel pressure pot (pressure up to 45 psi) designed to accommodate all solvents and adhesives, as well as cyanoacrylates and UV's direct from the manufacturers bottles. It has a stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use but can use plastic fittings if dispensing reactive adhesives. Airtight seals ensure no leakage or air entrapment problems. 75 psi operating pressure easily handles fluid with viscosity up to around 15,000 CPS.
The pressure gauge and pressure regulator are located on top for easy reading and access. When dispensing adhesives, a container or bottle or liner should be placed inside the tank chamber. Do not pour adhesives directly into the pot. Main tank body is stainless steel and the lid is aluminium. Fitted with an electrical low level switch. The outlet port for this tank is at the centre of the tank lid.
Material: Stainless Steel Body/ Aluminium Cap
Colour: Silver and Black
Outer Diameter: 360mm Diameter x 498mm Height
Inner Chamber: 250mm Diameter x 359mm Height
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet Thread: 1/4 Inch
Fluid Outlet Thread: 6 x 8mm (located centre of tank lid)
Weight :12.0 kg
Max Pressure: 45 psi (3 BAR) - safety valve set at 3 bar
Warranty: 1 Year
Details: CE certified and Rohs compliant
Commodity Code: 90289090
The pressure gauge and pressure regulator are located on top for easy reading and access. When dispensing adhesives, a container or bottle or liner should be placed inside the tank chamber. Do not pour adhesives directly into the pot. Main tank body is stainless steel and the lid is aluminium. Fitted with an electrical low level switch. The outlet port for this tank is at the centre of the tank lid.
Material: Stainless Steel Body/ Aluminium Cap
Colour: Silver and Black
Outer Diameter: 360mm Diameter x 498mm Height
Inner Chamber: 250mm Diameter x 359mm Height
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet Thread: 1/4 Inch
Fluid Outlet Thread: 6 x 8mm (located centre of tank lid)
Weight :12.0 kg
Max Pressure: 45 psi (3 BAR) - safety valve set at 3 bar
Warranty: 1 Year
Details: CE certified and Rohs compliant
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 45 psi - operating pressure
- Fluid Outlet Port - On the lid for easy access
- 4 Handles - For easy removal of lid
- Four knobs to open/close lid - For positive and uniform seal
- Pressure Gauge - Located on top for easy reading
- Pressure Regulator - Located on top for ease of access
- Relief Valve with Pull Ring - To depressurise after usage
- Disposable polyethylene - Fluid lines can be changed quickly
- Ferrule - Disposable with tubing eliminates cleanup
- Hose Kit - Supplied with tank
- Tube Sizes - 1/4", 3/8" and 4mm fittings available
