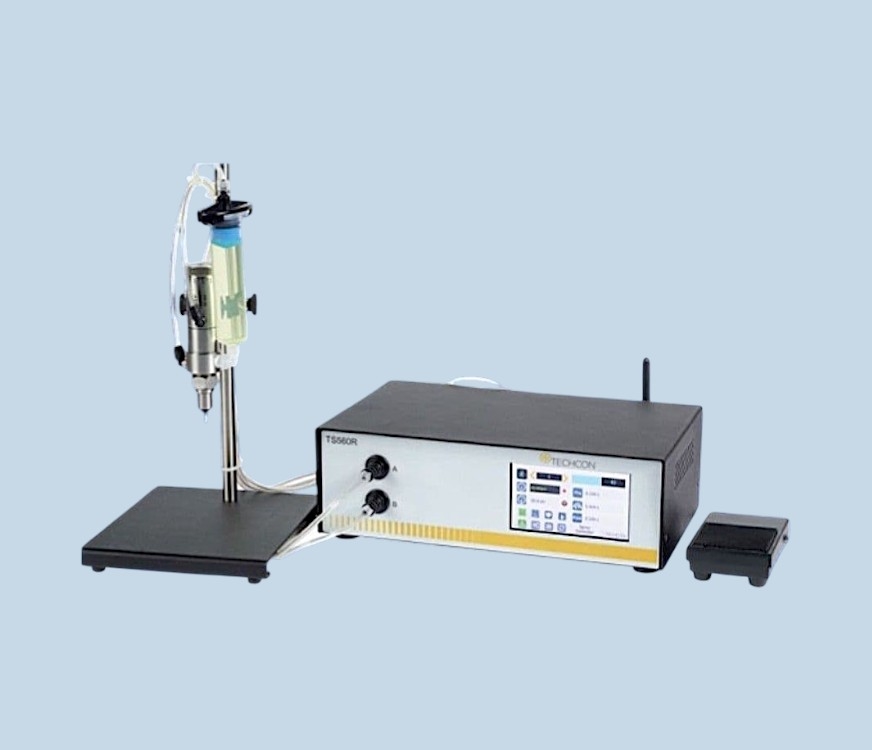

Timed Smart Spray Valve Controller TS566R
Product Code: TS560R
Price: £1,127.00
Description
The TS566R is a Smart spray valve controller capable of controlling all TS5520 series and TS5540 series spray valves. With a universal power supply, it is a fully plug and play system and can be used immediately, anywhere in the world.
The TS566R Smart spray valve controller features an intuitive touch screen interface for easy setup and operation. Dispensing parameters can be precisely configured directly on the touch screen or remotely through the networking options. First in its class, the TS566R is equipped with Ethernet and WiFi interfaces that allow users to configure the exact parameters and monitor and control the process from anywhere in the world. This feature complies with Smart Factory requirements of Industry 4.0. Additional advance features include digital timer to provide accurate and repeatable spray time, and digital pressure regulator with dual-unit display to allow precise pressure control.
The friendly user interface provides an option to program up to 50 varied, sequenced or individual shots. These systems have a user programmable purge, timed dispense cycle settings and a teach mode for determining the dispensing time.
Integration into semi-automatic and automatic machinery is made easy with the I/O interface connector that can be used to initiate and stop the dispense cycle with feedback to the host machine for the next cycle. A low-pressure warning feature is also included to help maintain uninterrupted dispensing.
The controller is shipped with the following items:
Universal power supply
Foot switch
Air Hose
Air Filter (5 Micron)
Universal power supply
Foot switch
Air Hose
Air Filter (5 Micron)
Accessories
Fluid reservoirs: The controller can be used in combination with the TS2220, TS2250 or TS1258 Pressure Tank
Dispensing Tips: Suitable for use with all tip series.
Fluid reservoirs: The controller can be used in combination with the TS2220, TS2250 or TS1258 Pressure Tank
Dispensing Tips: Suitable for use with all tip series.
Part Number: TS566R
Size (Imperial): 11.4" W x 8.3'' L x 3.9'' H
Size (Metric): 290mm x 211mm x 99mm
Weight: 6.8 lb (3100g)
Pressure Range: 0 to 100psi (0-6.9 bar)
Display: Touch Screen
Timing Range: 0.008 - 99.9 seconds
Timing Tolerance: +/- 0.001%
Input Voltage: 100 - 240 VAC
Cycle Rate: 900/min.
Cycle Modes: Timed, Interrupt, Teach, Purge
Connectivity: Ethernet, WIFI
Certification: CE, TUV-GS
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Key Features and BenefitsTouch Screen interface for easy setup and operation
Industry 4.0 for Smart Factory Integration
Universal power supply for worldwide use
Digital pressure regulator for precise controlTypical Applications Control spray valve for:
Conformal coating application
Lubrication application
Marking application
