Smart Digital Timed Valve Controller TS550R
Product Code: TS550R
Price: £1,085.00
Description

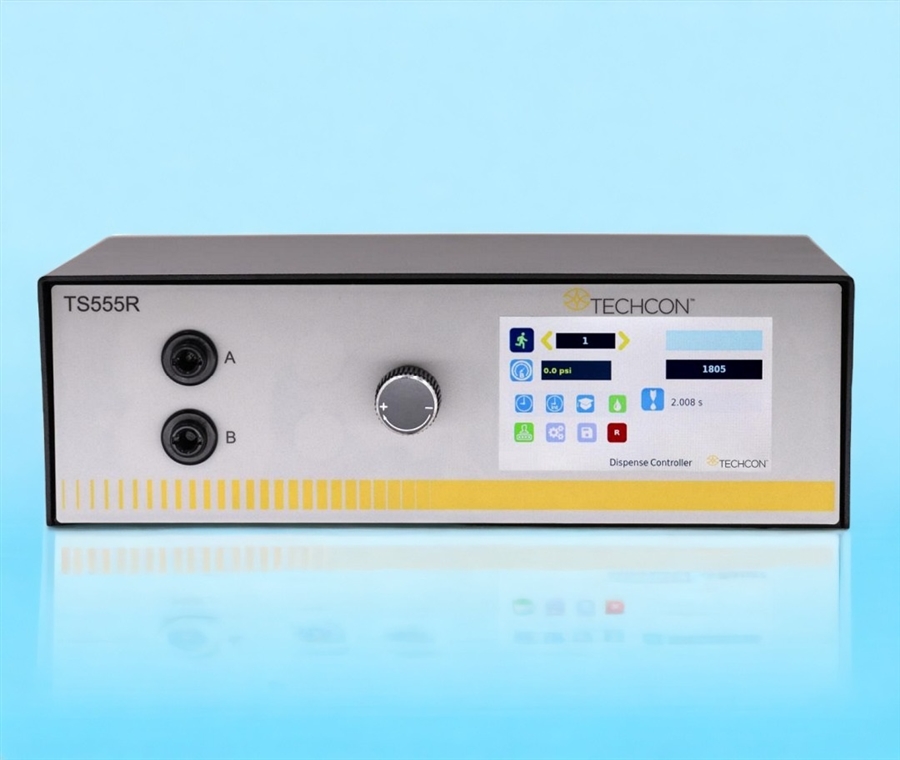

* Please note the TS550R controller has been replaced by the TS555R controller.
The TS550R is a smart controller capable of controlling all pneumatic valve series including: TS1212 pinch tube valve, TS941/TS5322 Spool valve, TS5420/TS5440 Needle valve and TS5620/TS5622 Diaphragm valve. With a universal power supply, it is a fully plug and play system and can be used immediately, anywhere in the world.
The TS550R Smart valve controller features an intuitive touch screen interface for easy setup and operation. Dispensing parameters can be precisely configured directly on the touch screen or remotely through the networking options.
The TS550R is a smart controller capable of controlling all pneumatic valve series including: TS1212 pinch tube valve, TS941/TS5322 Spool valve, TS5420/TS5440 Needle valve and TS5620/TS5622 Diaphragm valve. With a universal power supply, it is a fully plug and play system and can be used immediately, anywhere in the world.
The TS550R Smart valve controller features an intuitive touch screen interface for easy setup and operation. Dispensing parameters can be precisely configured directly on the touch screen or remotely through the networking options.
First in its class, the TS550R is equipped with Ethernet and WiFi interfaces that allow users to configure the exact parameters and monitor and control the process from anywhere in the world. This feature complies with Smart Factory requirements of Industry 4.0.
Additional advance features include digital timer to provide accurate and repeatable dispense time, and digital pressure regulator with dual-unit display to allow precise pressure control.
The friendly user interface provides an option to program up to 50 varied, sequenced or individual shots. These systems have a user programmable purge, timed dispense cycle settings and a teach mode for determining the dispensing time.
Integration into semi-automatic and automatic machinery is made easy with the I/O interface connector that can be used to initiate and stop the dispense cycle with feedback to the host machine for the next cycle. A low-pressure warning feature is also included to help maintain uninterrupted dispensing.
The controller is shipped with the following items:
The controller is shipped with the following items:
- Universal power supply
- Foot switch
- Air hose
- Air filter (5 Micron)
- Foot switch
- Air hose
- Air filter (5 Micron)
Accessories
- Fluid reservoirs: The controller can be used in combination with the TS1254 or TS1258 Pressure Tank
- Dispensing Tips: Suitable for use with all tip series.
- Fluid reservoirs: The controller can be used in combination with the TS1254 or TS1258 Pressure Tank
- Dispensing Tips: Suitable for use with all tip series.
Part Number: TS550R
Size (Imperial): 11.4" W x 8.3'' L x 3.9'' H
Size (Metric): 290mm x 211mm x 99mm
Weight: 6.8 lb (3100g)
Pressure Range: 0 to 100psi (0-6.9 bar)
Display: Touch Screen
Timing Range: 0.008 - 99.9 seconds
Timing Tolerance: +/- 0.001%
Input Voltage: 100 - 240 VAC
Cycle Rate: 900/min.
Cycle Modes: Timed, Interrupt, Teach, Purge
Connectivity: Ethernet, WIFI
Certification: CE, TUV-GS
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Key Features and BenefitsTouch Screen interface for easy setup and operation
Industry 4.0 for Smart Factory Integration
Universal power supply for worldwide use
Digital pressure regulator for precise controlTypical Applications
Control Diaphragm for bonding application
Control Mini Spool valve for form-in-place gasket
Control Needle valve for precision filing process
