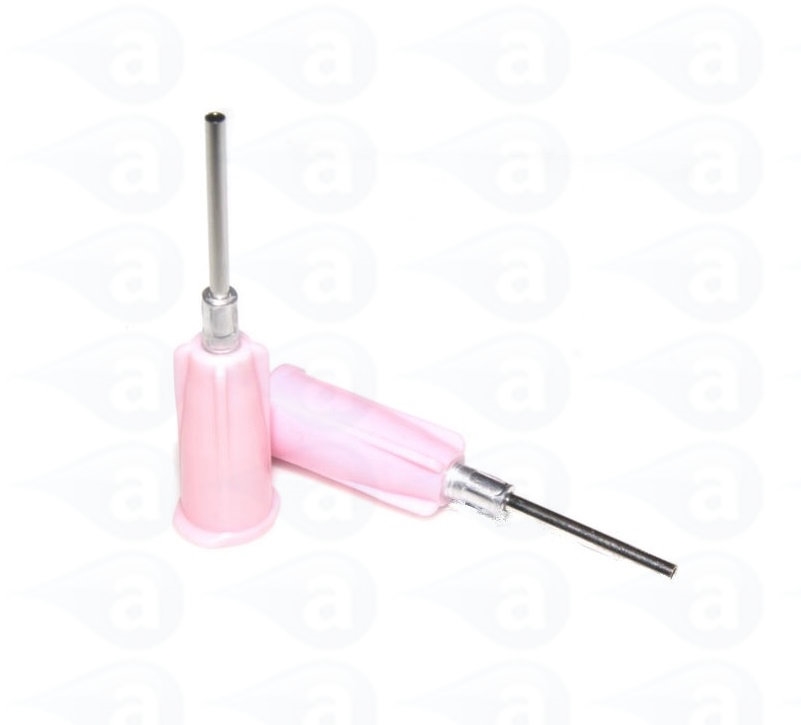

ST18-1/2 Precision crimped dispensing tip techcon adhesive dispensing

Description

The Sem-Luer needles are constructed with rigid stainless steel, blunt-end tubing.. Stainless steel tubing is cut to precise lengths and ground to be burr-free. Cut tubing is crimped into aluminium locking insert, then moulded into polyethylene hubs. Moulded hub colours correspond to gauge size. All tips secure to syringe barrels and correspond to the luer lock specification.

Tips are colour coded for gauge size. The tip uses a slightly tapered internal design where the shaft joins the hub to ease fluid flow and reduce restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. Pricing is for a box of 50.

Part ID: ST18-1/2
Materials: Polypropylene/ Stainless Steel
Hub Colour: Pink
Inner Diameter: 0.033" - 0.840 mm
Outer Diameter: 0.050" - 1.270 mm
Tube Length: 0.50" - 12.70 mm
Tip Details: Industrial grade, Silicone Free

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Precision burr free tubing 0.5" length
Silicone free plastics
Safe for use up to 100 psi
Luer lock colour coded hubs
Crimped shaft to hub
Packs of 50 or bulk on request
Compatible with all fluids
