97228 Precision Tip 25 gauge 1/2" red P1600451

Description

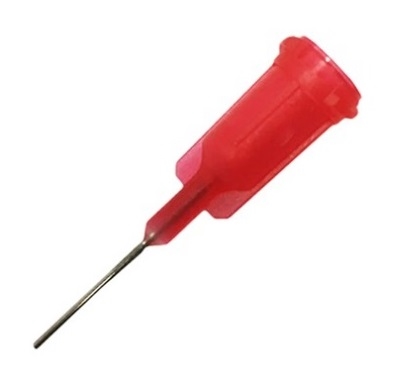

LOCTITE 97228 (IDH 88667) are red, 12.7mm long, 25 gauge straight dispense needles made from stainless steel. They have a Luer-Lock connection.

Consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Use these tips for applying most liquids for high precision controlled dispensing.

Tips are colour coded for gauge size. The tip features a tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. These products ship direct from stock from our UK warehouse. Pricing is for a pack of 50 tips.

Material: Polypropylene/ Stainless Steel
Hub Colour: Red
Hub ID: 0.010" - 0.25 mm
Hub OD: 0.020" - 0.51 mm
Tube Length: 0.5" - 12.7mm
Maximum Pressure: 100 PSI
Details: Industrial grade, Silicone Free

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Precision burr free tubing
0.5" long precision tube lengths
Silicone free safe plastics
Safe for use up to 100 psi
Double helix luer lock colour coded hubs
UV filter plastic hubs
For all fluids, adhesives and solvents
