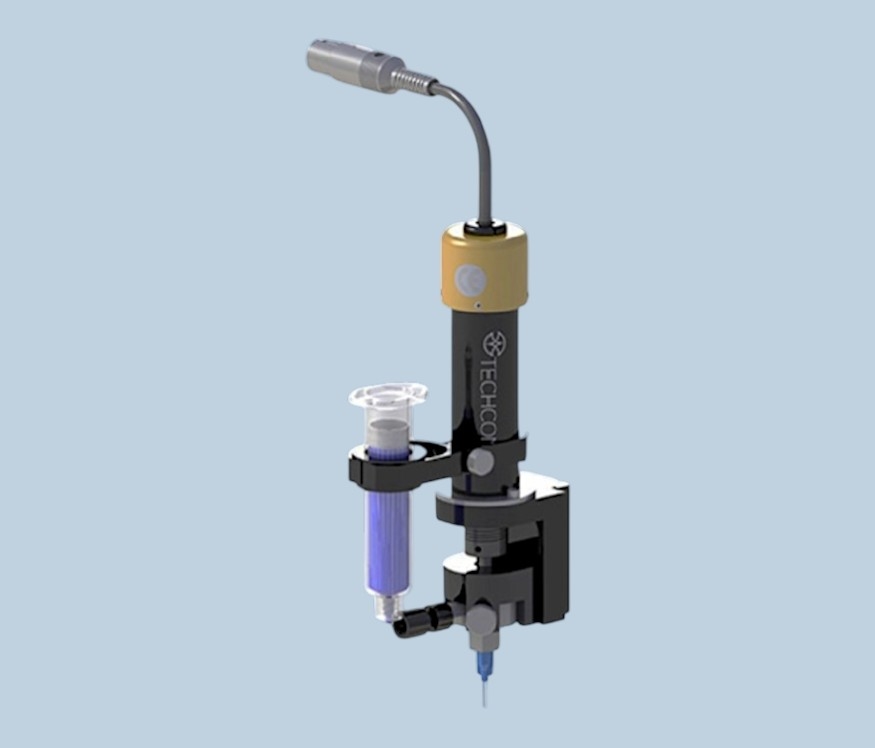

TS7000E-8-SSHT-DCX Rotary Valve 8 Pitch

Description

The TS7000E Series IMP Rotary Valves are the latest additions to the Rotary Microvalve family. The valve uses a feed screw (auger) to dispense fluid with a rotary displacement action, allowing ultra-precise control of the dispensing process. The valve's modular design allows quick and easy replacement of the feed screw/chamber cartridge assembly without removing the valve from the machine.

In addition, the valve cartridge can be interchanged to use with DMP feed screw inserts. The TS7000 Series IMP valve is available in 3 choices of feed screw sizes (16-pitch, 8-pitch and high output 8-pitch), all made of precision hardened tool steel. An encoder motor version is available for applications that require closed-loop motor control with encoder feed back.

Length (without dispense tip): 6.78 Inch (172.2mm)
Width: 3.70 Inch (94mm)
Weight: 0.86lb (0.40 kg)
Wetted Parts: Heat treated Tool Steel, Stainless steel, UHMWPE, Turcite, Nylon
Motor : 6-Watt, 400 RPM (no load)
Encoder: 500 counts/turn Input Voltage: 5-24 VDC
Recommended Fluid Pressure: 30 psi (2.07 bar)
Viscosity range: 30K to 1300K Cps.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicone's, gels and epoxies.

Features

Field replaceable spare parts
Accurate and repeatable dispensing output
Precision and durable feed screw/chamber
Quick and easy feed screw/chamber cartridge changeover
Low-maintenance design
Interchangeable with TS5000DMP valve body
Flexible syringe mounting position
Flexible needle installation position
Flexible motor mounting position
Closed-loop motor control with encoder feedback (encoder version)
