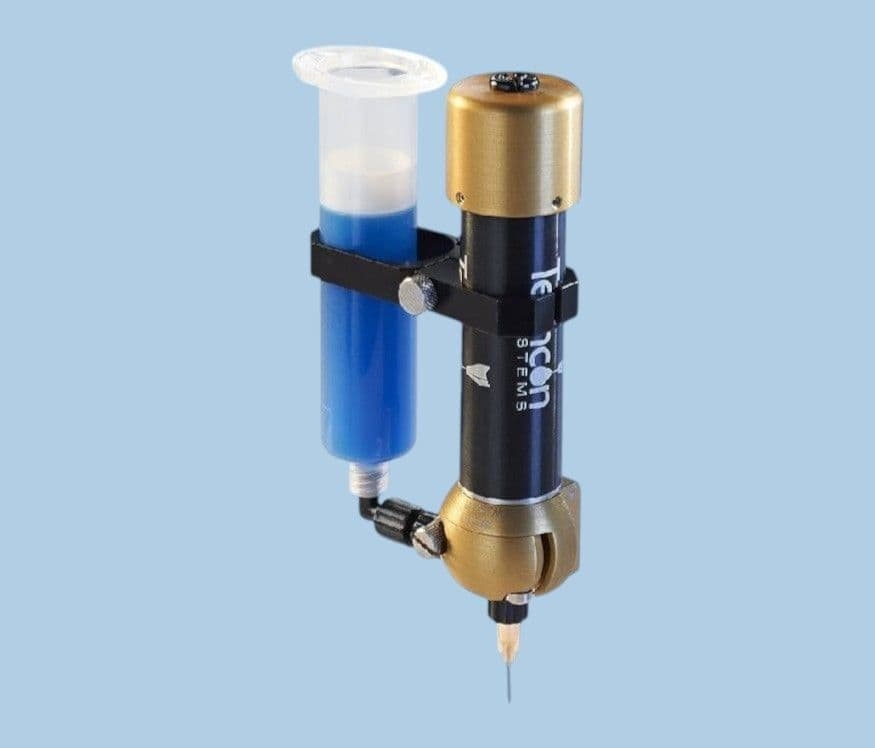

Motor Driven DMP Auger Valve TS5000DMP-DCX-SR
Product Code: TS5000DMP-DCX-SR
Price: £2,446.00
Description
Rotary
valves use a rotary feed screw (auger) to dispense fluid with a positive
displacement action, allowing for ultra-precise control of the dispensing
process. The unique design ensures that material is constantly present at the
feed screw inlet, while the controlled rotation of the feed screw moves the
material from the feed to the discharge point. Discrete control of the forward
and reverse rotations of the feed screw controls the amount of material
discharged. The unique DMP (Disposable Material Path) valve (TS5000DMP) offers
a choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made of
Delrin.
The DMP
Valve has a hinged doorway that opens easily so the disposable auger can be
removed and replaced within seconds, while the line is still in operation,
significantly reducing downtime and waste. This version is a right hinge openings makes the valve suitable for mounting on most automated systems.
This version is the slim body version. This valve is suited to dispensing solder pastes, die attach, SMT adhesives, thermal
compounds, pre-mixed and frozen epoxies, chip encapsulation and dam writing.
Control the TS5000DMP valves with the TS570R digital controller.
Part ID: TS5000DMP-DCX-SR
Size: 149mm L x 90mm W
Weight: 350 g
Wetted Parts: Delrin, Fluorocarbon Rubber, Nylon
Viscosity Range: Min 30k CPS - 1.3 Million CPS
Min Shot Size: 0.020" (0.508mm) Wide
Repeatability: +/- 0.20%
Cycles Per Minute Max: 240
Max Fluid Pressure: 30 psi ( 2.1 Bar)
Material Inlet: Female Luer Lock
Material Outlet: Male Luer Lock
Valve Mounting: 1.0 Inch Wide Channel
Commodity Code: 90289090
Origin: US
Warranty: 1 Year
Features
- Ideal for pastes, solder pastes, fluxes, SMT adhesives
- Precise and consistent shot sizes down to micro-litres
- Motor reverse capability for zero ooze/ drips
- Quick field replaceable wetted parts
- Adjustable dispense rates
- Zero clean-up with disposable feed-path components
- Wide variety of configurations
- Includes a 6 pitch, 8 pitch and 16 pitch feedpath
- Simple to control using the TS500R digital controller
