Hand Lever Manual Pinch Tube Valve TS1201-1
Product Code: TS1201-1
Price: £177.00
Description

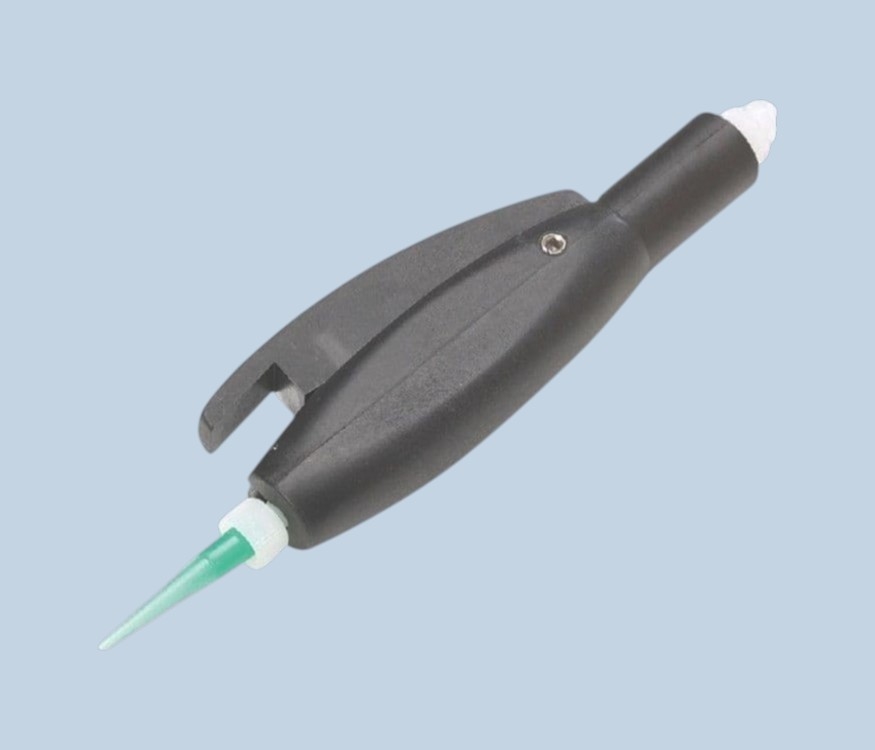

The TS1201 Dispensing Pen uses a disposable moulded tube assembly. This valve is designed to handle a wide variety of low to medium viscosity fluids, from adhesives and lubricants to sealants and liquid masks. Gravity or pressure fed, it is ideal for controlled rates of dispensing. Includes pre-assembled applicator pen with clear pinch tubes only. This version does not include fluid lines or needle tips. It is the valve only with a natural pinch tube. Order fluid line feed tubes for this valve separately.
The valve uses disposable pinch tubes either clear plastic (for Cyanoacrylates & most other liquids) or black (for UV cure adhesives). The tube features a male luer lock at the tip end (to accept any standard needle/ tapered tips) and a female luer lock connector the other end. This allows you to connect the valve to fluid lines and then to a pressure pot, cartridge reservoir or syringe feed. The valve is kept closed (pinched) until the lever is pressed which opens the tube to allow fluid flow. Once the lever is released, the spring loaded rod pushes against the tube to seal and stop fluid flow .
We recommend this valve for dispensing Cyanoacrylate adhesives, solvents, UV cure, low viscosity epoxies, inks, paints, primers, activators, wood glues, craft glues, anaerobic adhesives & many more. Because this valve uses plastic tubes that can be replaced in seconds, it is maintenance free and does not require time spent cleaning or purging. Fluid can be fed via a pressure pot, cartridge reservoir or syringe barrel (ordered separately).
Part ID: TS1201-1
Size: 127mm L x 34mm D
Weight: 36 g
Wetted Parts: Polyethylene
Viscosity Range: 1 to 45,000 CPS
Flow Rate: 0.54 Gallon Per Minute at 60 psi (water)
Max Fluid Pressure: 60 psi ( 4 Bar)
Material Inlet: Female Luer Lock
Material Outlet: Male Luer Lock
Valve Mounting: n/a
Colour: Black
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for cyanoacrylates, UV cure and anaerobics
- Zero cleanup with replaceable pinch tubes
- Low cost dispensing solution supplied complete
- Controlled deposits, lines or potting of most liquids
- Syringe feed, cartridge feed or pressure pot
- Supplied with clear pinch tubes Hand operated
- 1 Year Warranty
