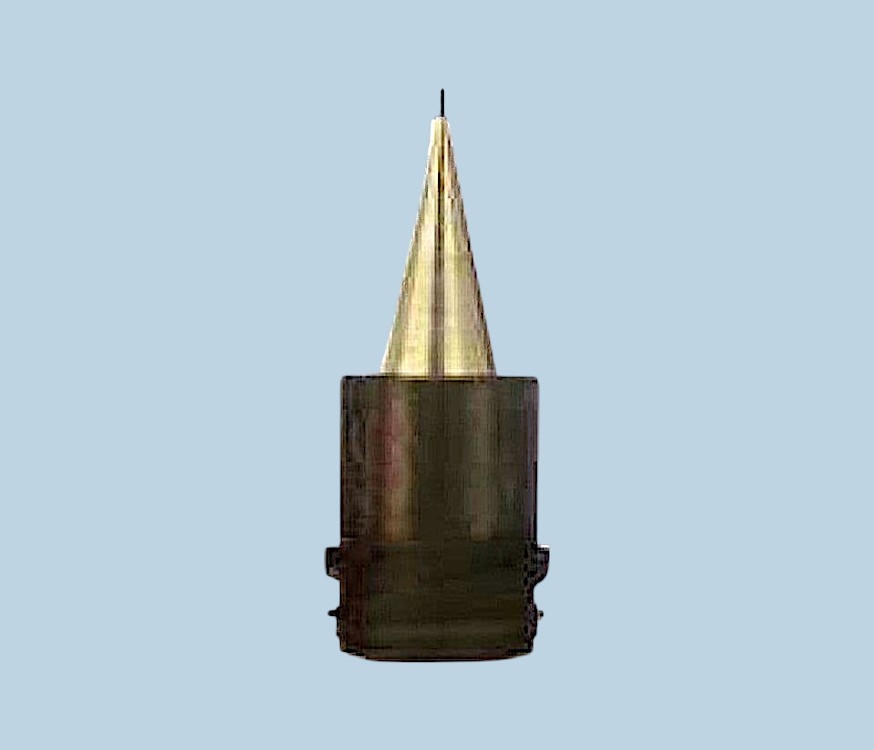

30G MT-Series Precision Tip MT30-PBN pk/1
Product Code: MT30-PBN
Price: £19.80
Description
The MT Series precision metal tapered tips deliver the best in high fluid flow rates, which are ideal for high speed dispensing, at a fraction of the cost of comparable precision tips, in the market. The smooth internal conical fluid flow path increases performance, reduces clogging and back pressure allowing for higher flow rates.
The Phosphor-Bronze metal construction, with Electroless Nickel, plating makes the MT Series ideal for use in robotic applications or whenever precision counts. The thin walled design at the tip enhances dispensing accuracy while at the same time reduces fluid tailing and stringing.
Available from 18 to 30 gauge, the MT Series tips are colour coded for easy identification. Sold individually
Key Features:
- Smooth internal fluid path:
- Reduces turbulent fluid flow
- Reduces back pressure
- Increases fluid flow rates.
- Reduces air entrapment and fluid dripping
- Smooth internal fluid path:
- Reduces turbulent fluid flow
- Reduces back pressure
- Increases fluid flow rates.
- Reduces air entrapment and fluid dripping
Metal construction:
- Provides accurate positioning
- Ideal for automatic dispensing applications
- Thin walls - Reduces fluid tailing and stringing
- Clog resistant - ideal for filled fluids
- Provides accurate positioning
- Ideal for automatic dispensing applications
- Thin walls - Reduces fluid tailing and stringing
- Clog resistant - ideal for filled fluids
Part ID: MT30-PBN
Tip Materials: Stainless Steel/ Nickel
Tip Colour: Black
Inner Diameter: 0.233mm- 0.009"
Outer Diameter: 0.305- 0.012"
Details: Industrial Grade
Commodity Code: 90289090
Pack Size: 1
Tip Materials: Stainless Steel/ Nickel
Tip Colour: Black
Inner Diameter: 0.233mm- 0.009"
Outer Diameter: 0.305- 0.012"
Details: Industrial Grade
Commodity Code: 90289090
Pack Size: 1
Industrial grade safe for use to 100 psi. Ideal for use on robot dispensing systems as tips are cut to a high precision for total consistency. Supplied in a sealed box of 8 tips.
Features
- Micro precision dispense dots and lines to 50 microns
- Conical tapered convergent duct (optimized flow path)
- Repeatable precision
- Thin rigid metal construction
- Color coded hubs
- Secure Luer lock connection
- Precision solder paste deposition
- Precision close die tolerance underfill
- Medical precision
- MEMS
- Semiconductor packaging
- Automated micro-dispensing applications
- Re-usable hub option
- Precision machined accuracy
- Improved accuracy on robotic applications
- Dispense higher viscosities with lower pressures
- Resist clogging, improved fluid break off, no stringing
- A solution for proximity challenges
- Luer adaptation
