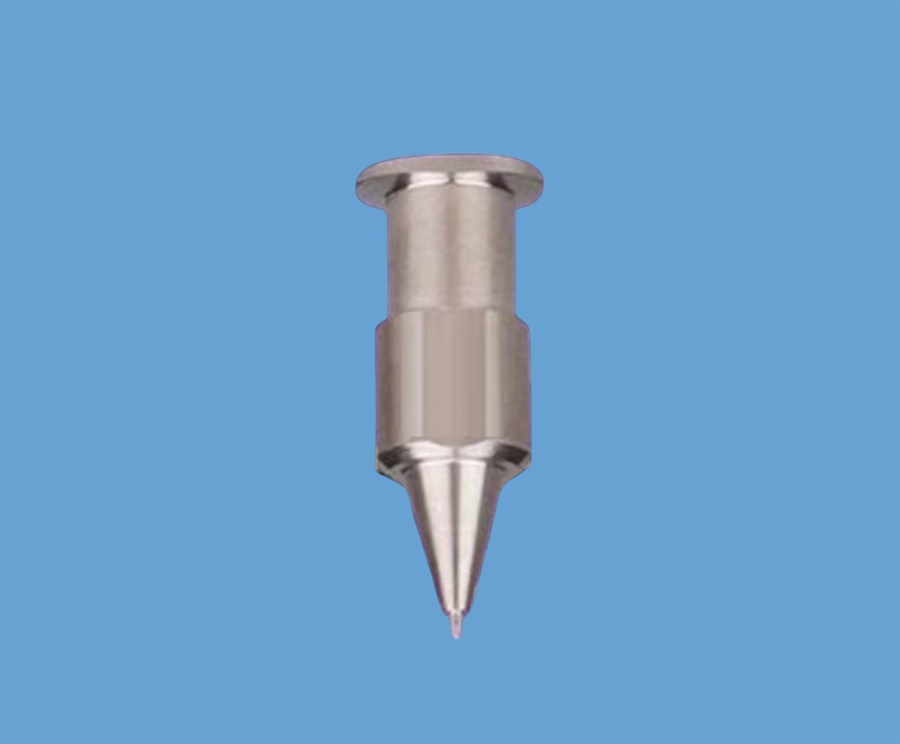

27G MMT-Series Precision Tip MMT002 25 Gauge Adhesive Dispensing Ltd

Description

The MMT needle series consist of a stainless steel constructed, high quality micro precision range. This high quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. In diameters from 1.4mm to 0.15mm and 18.25mm long. Suitable for dispensing most fluids, SMT adhesives and solvents.

Industrial grade safe for use to 100 psi. Ideal for use on robot dispensing systems as tips are cut to a high precision for total consistency. Supplied in a sealed box of 1 tip.

Key Features:
- Smooth internal fluid path:
- Reduces turbulent fluid flow
- Reduces back pressure
- Increases fluid flow rates.
- Reduces air entrapment and fluid dripping

Metal construction:
- Provides accurate positioning
- Ideal for automatic dispensing applications
- Thin walls - Reduces fluid tailing and stringing
- Clog resistant - ideal for filled fluids

Part ID: MMT002
Tip Material: Stainless Steel
Tip Colour: Silver
Inner Diameter: 0.20mm - 0.008"
Outer Diameter: 0.29mm - 0.012"
Details: Industrial Grade, Silicone Free
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Pack Size: 1

Features

Micro precision dispense dots and lines to 50 microns
Conical tapered convergent duct (optimized flow path)
Repeatable precision
Thin rigid metal construction
Color coded hubs
Secure Luer lock connection
Precision solder paste deposition
Precision close die tolerance underfill
Medical precision
MEMS
Semiconductor packaging
Automated micro-dispensing applications
Re-usable hub option
Precision machined accuracy
Improved accuracy on robotic applications
Dispense higher viscosities with lower pressures
Resist clogging, improved fluid break off, no stringing
A solution for proximity challenges
Luer adaptation

0.2mm ID MMT-Series Precision Tip MMT002 pk/1

0.2mm ID MMT-Series Precision Tip MMT002 pk/1
