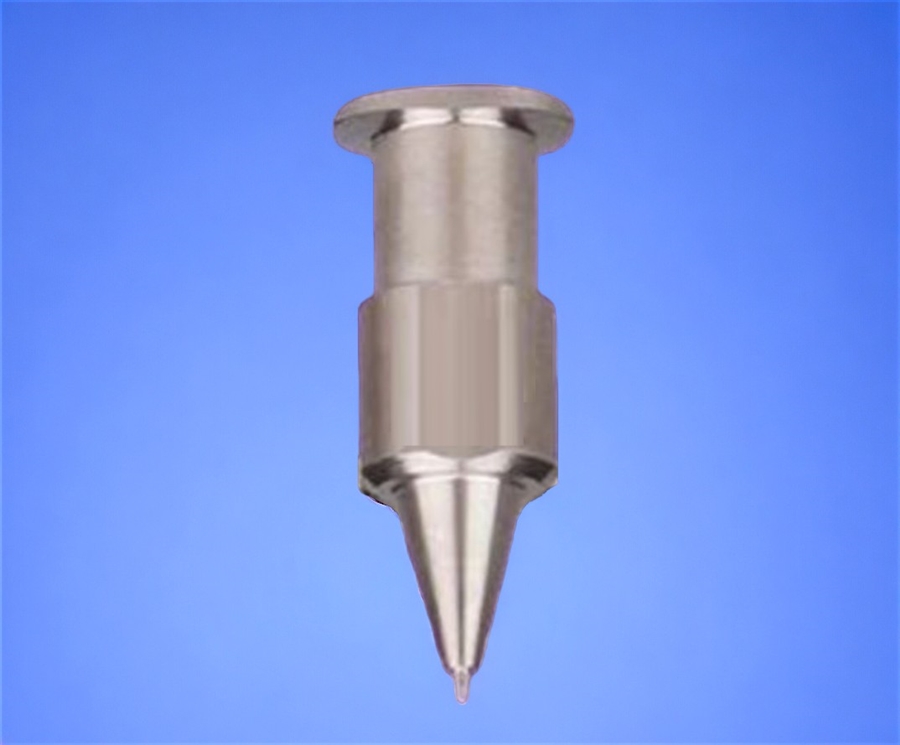

0.6mm ID MMT-Series Precision Tip MMT006 pk/1
Product Code: MMT006
Price: £14.50
Description
The MMT needle series consist of a stainless steel constructed, high quality micro precision range. This high quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. In diameters from 0.15mm to 1.4mm and 18.25mm long. Suitable for dispensing most fluids, SMT adhesives and solvents.
- Smooth internal fluid path:
- Reduces turbulent fluid flow
- Reduces back pressure
- Increases fluid flow rates.
- Reduces air entrapment and fluid dripping
- Provides accurate positioning
- Ideal for automatic dispensing applications
- Thin walls - Reduces fluid tailing and stringing
- Clog resistant - ideal for filled fluids
Tip Material: Stainless Steel
Tip Colour: Silver
Inner Diameter: 0.60mm - 0.024"
Outer Diameter: 0.70mm - 0.028"
Details: Industrial Grade
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Pack Size: 1
Features
- Micro precision dispense dots and lines to 50 microns
- Conical tapered convergent duct (optimized flow path)
- Repeatable precision
- Thin rigid metal construction
- Color coded hubs
- Secure Luer lock connection
- Precision solder paste deposition
- Precision close die tolerance underfill
- Medical precision
- MEMS
- Semiconductor packaging
- Automated micro-dispensing applications
- Re-usable hub option
- Precision machined accuracy
- Improved accuracy on robotic applications
- Dispense higher viscosities with lower pressures
- Resist clogging, improved fluid break off, no stringing
- A solution for proximity challenges
- Luer adaptation
