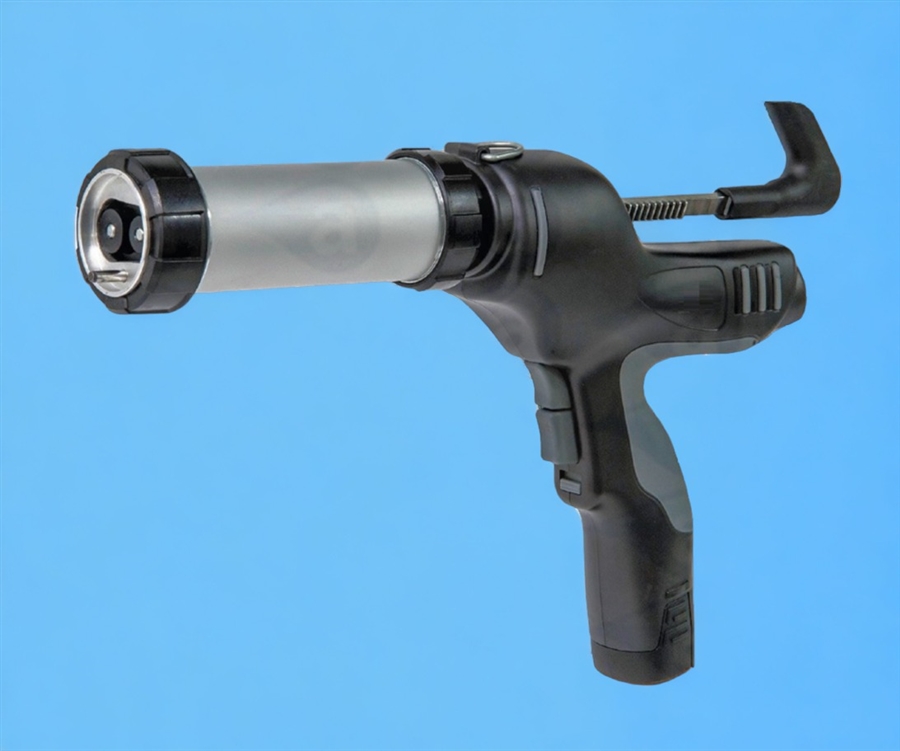

50ml Battery Dual Gun 10:1 ADCBE-50-10
Product Code: ADCBE-50-10
Price: £375.00
Description
Powerful and lightweight cordless tool, for precision dispensing of two component materials. The CBE 50 is the perfect mobile platform for applying adhesives and sealants in remote locations and tight spaces, where compressed air and manual hand input are not appropriate. These tools can be configured to accommodate any material ratio for all types of 50ml cartridges. This version is for the 10:1 dual cartridge 50ml square flange type.
Key Features and Benefits
- Soft Rubber Grips & Rest Pads - improved comfort, and tool slide reduction on inclined work surfaces.
- Compact & Light Weight - easy to manoeuvre, with reduced operator fatigue during prolonged usage.
- Variable Speed Trigger - allows end users to material dispensing rate, even when dosing.
- Auto-reverse System - reduces material overflow after dispensing.
- Trigger Lock - prevents accidental discharge of material.
- Latest Li-Ion Battery Technology - fast (30min) battery charge. 50+ cartridges per battery charge.
- Compact and light tool for low to medium viscosity materials.
- Maximum (no-load) speed: 2.5mm/second.
- Stall force: 1.5kN.
- Light Weight: 1.6kg (with battery fitted)
Dosing System
- A dosing option allows operators to dispense metered shots of material, on a repeatable basis. Guns are supplied with a standard programme:
- Dial Setting 1 (low): Delivers 3g of material (depending on material type and viscosity).
- Dial Setting 8 (High): Delivers 25g of material (depending on material type and viscosity).
- Dial Setting 9 (Continuous Operation): Dose free operation.
Li-Ion Battery Technology
- Rechargeable 10.8V lithium-ion battery.
- Fully charged within 30 minutes of using a universal charger.
- High energy densities.
- No memory loss - can be charged at any time (does not have to be run empty first).
- Considerably less loss of charge when not in use (charge still in place even after months of limited use).
- All applicators are supplied with ONE battery as standard; a second battery can be supplied on request at an additional cost.
This gun will handle 50ml dual cartridges for 4:1 ratio. Ideal for use with prefilled adhesive cartridges. This gun uses metal rods that push down into the cartridge pistons to provide an even flow.
Cartridge Size: 50ml 10:1 ratio
Gun Weight: 1.6kg
Battery: 10.8v
Torque: 1.5kN
Charge Time: 100% in 30 minutes
Shot Size: 3g to 25g adjustable or continuous mode
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Key Features and Benefits
- Soft Rubber Grips & Rest Pads - improved comfort, and tool slide reduction on inclined work surfaces.
- Compact & Light Weight - easy to manoeuvre, with reduced operator fatigue during prolonged usage.
- Variable Speed Trigger - allows end users to material dispensing rate, even when dosing.
- Auto-reverse System - reduces material overflow after dispensing.
- Trigger Lock - prevents accidental discharge of material.
- Latest Li-Ion Battery Technology - fast (30min) battery charge. 50+ cartridges per battery charge.
- Compact and light tool for low to medium viscosity materials.
- Maximum (no-load) speed: 2.5mm/second.
- Stall force: 1.5kN.
- Light Weight: 1.6kg (with battery fitted)
Dosing System
- A dosing option allows operators to dispense metered shots of material, on a repeatable basis. Guns are supplied with a standard programme:
- Dial Setting 1 (low): Delivers 3g of material (depending on material type and viscosity).
- Dial Setting 8 (High): Delivers 25g of material (depending on material type and viscosity).
- Dial Setting 9 (Continuous Operation): Dose free operation.
Li-Ion Battery Technology
- Rechargeable 10.8V lithium-ion battery.
- Fully charged within 30 minutes of using a universal charger.
- High energy densities.
- No memory loss - can be charged at any time (does not have to be run empty first).
- Considerably less loss of charge when not in use (charge still in place even after months of limited use).
- All applicators are supplied with ONE battery as standard; a second battery can be supplied on request at an additional cost.
This gun will handle 50ml dual cartridges for 4:1 ratio. Ideal for use with prefilled adhesive cartridges. This gun uses metal rods that push down into the cartridge pistons to provide an even flow.
Cartridge Size: 50ml 10:1 ratio
Gun Weight: 1.6kg
Battery: 10.8v
Torque: 1.5kN
Charge Time: 100% in 30 minutes
Shot Size: 3g to 25g adjustable or continuous mode
Warranty: 1 Year
Commodity Code: 90289090
Origin: GB
Brand: Sulzer Mixpac Medmix
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Fits all 50ml 10:1 size cartridges
- Easy cartridge load and unload
- Controlled deposit or beads
- Lightweight robust construction Reverse rod reduces drips
- Built in adjustable timer
