500cc Big Barrel & Piston Kit AD500XL
Product Code: AD500XL
Price: £14.50
Description

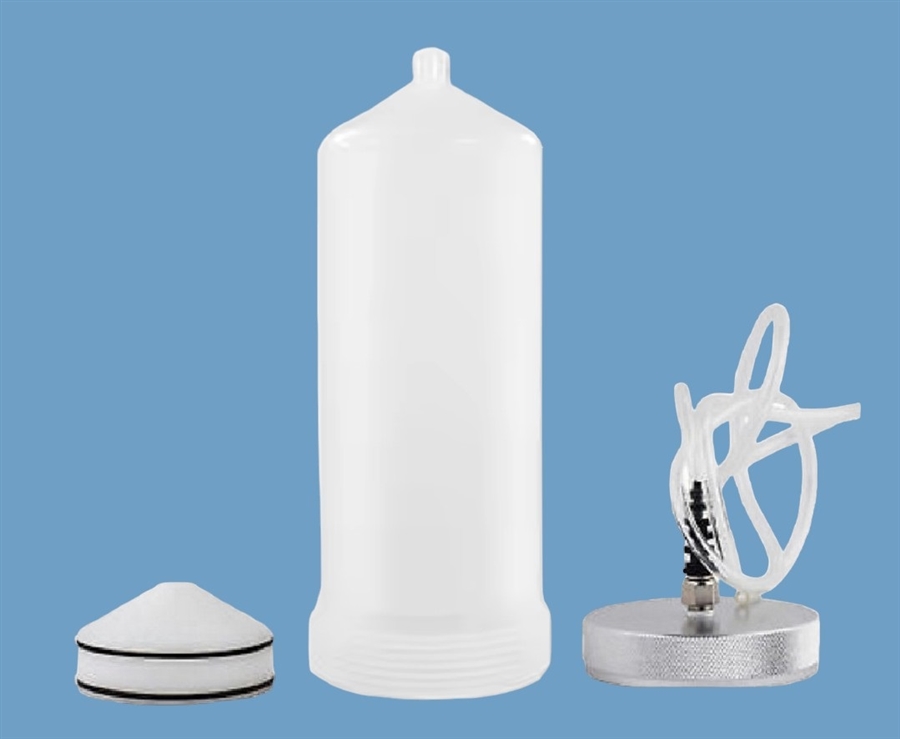

The AD500XL is a large industrial air barrel that includes wiper piston, threaded air cap and airline hose with quick connector. It will connect directly into any air-powered dispenser. Load the barrel with material, insert the wiper piston, attach the air cap to the dispenser. Use any luer lock dispensing tip. As the barrel is pressurised, the piston moves down to dispense the material consistently. Features a double helix luer lock for secure dispense tip attachment. Supplied as a complete assembly. Natural (clear) colour.
This large barrel can also be used as a fluid reservoir to feed liquids and pastes directly into our dispense valves. Maximum operating pressure is 100 psi (6.9bar).
MPN: AD500XL
Barrel Material: High Density Polypropylene (HDPP)
Piston Material: High Density Polyethylene (HDPE)
Volume Capacity 500cc (500ml)
Tip Connection: Luer Lock
Barrel Length: 200mm (7.87")
Outer Diameter: 71mm (2.79")
Inner Diameter: 64mm (2.52")
Tip Hole Outlet Size 0.12" (3mm)
Colour Natural (Clear)
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
This large barrel can also be used as a fluid reservoir to feed liquids and pastes directly into our dispense valves. Maximum operating pressure is 100 psi (6.9bar).
MPN: AD500XL
Barrel Material: High Density Polypropylene (HDPP)
Piston Material: High Density Polyethylene (HDPE)
Volume Capacity 500cc (500ml)
Tip Connection: Luer Lock
Barrel Length: 200mm (7.87")
Outer Diameter: 71mm (2.79")
Inner Diameter: 64mm (2.52")
Tip Hole Outlet Size 0.12" (3mm)
Colour Natural (Clear)
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment on barrel
- Dual blade white wiper piston
- Zero draft inner walls for precision
