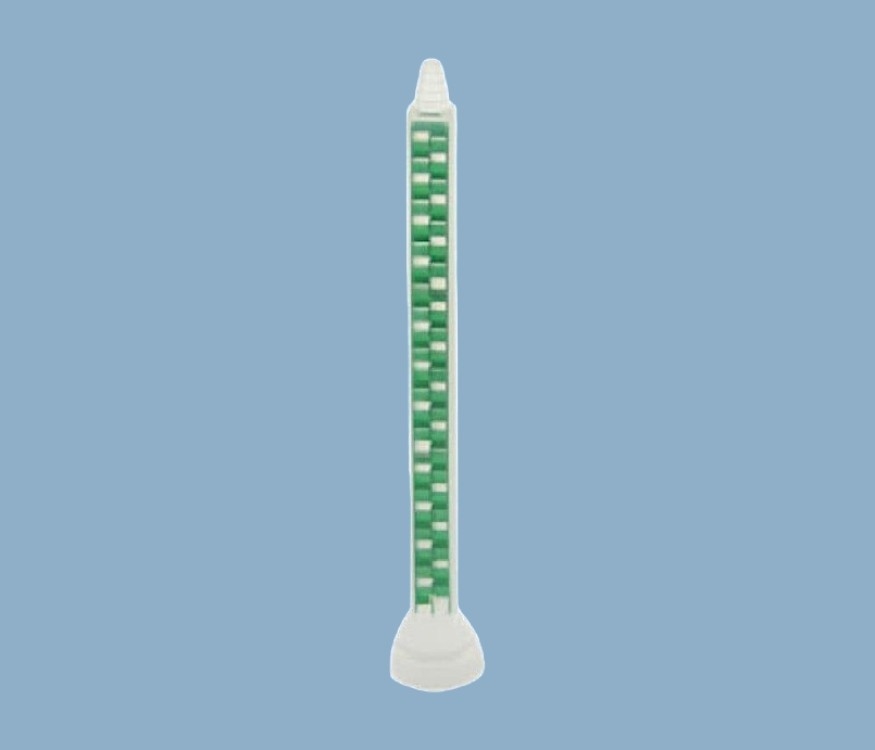

Mix Nozzle 7.5mm ID x 24 EL MCQ07-24T pk/100
Product Code: MCQ07-24T
Price: £83.00
Description
Bell mouth inlet, Quadro square helical static mixer for 200ml and 400ml dual component epoxy type cartridges. Stepped nozzle outlet that can be used with tip luer adapter fitting and needle tips.
These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component materials. They have greene inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 7.5mm ID x 24 mixing elements. Pricing is for a pack of 100 nozzles.
Part ID: MCQ 07-24T
Material: Polypropylene
Colour: Natural Outer, Green Elements
Inner Diameter: 7.5mm
Outer Diameter: 9.5mm
Elements: 24
Length: 130mm
Volume in Nozzle: 6.19ml
Details: Industrial grade, Silicone Free
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component materials. They have greene inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 7.5mm ID x 24 mixing elements. Pricing is for a pack of 100 nozzles.
Part ID: MCQ 07-24T
Material: Polypropylene
Colour: Natural Outer, Green Elements
Inner Diameter: 7.5mm
Outer Diameter: 9.5mm
Elements: 24
Length: 130mm
Volume in Nozzle: 6.19ml
Details: Industrial grade, Silicone Free
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
