2.5oz syringe barrel filling station AD25MF Adhesive Dispensing Ltd

2.5oz Syringe Filling Station AD25MF

Product Code: AD25MF

Price: £325.00

Description

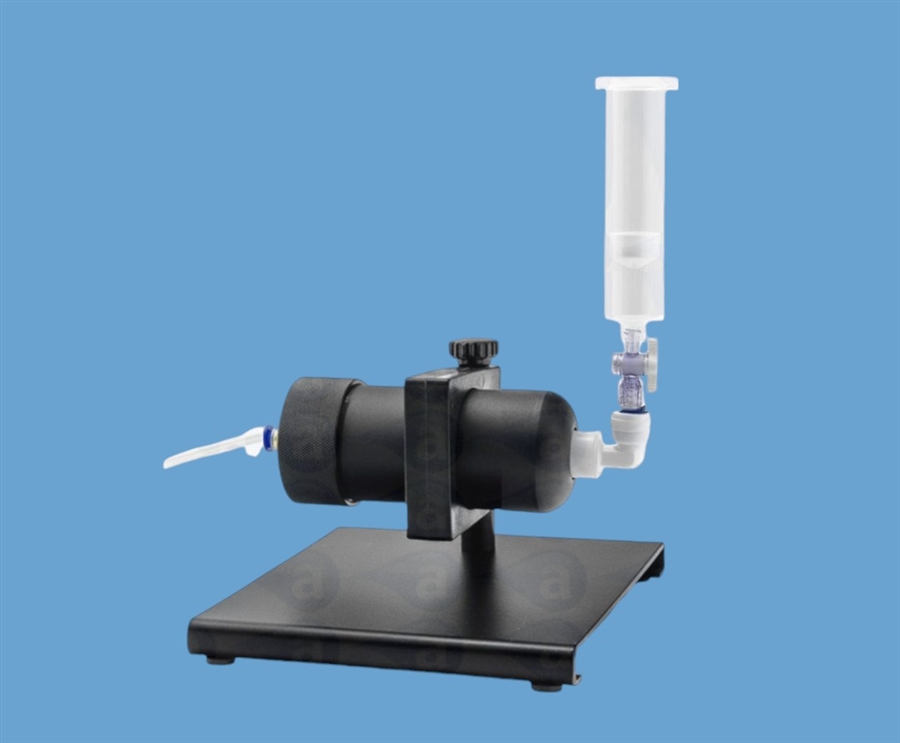

The model AD25M loads a barrel directly from a 2.5oz (75cc/ml) cartridge. This barrel loader is connected to an air regulator and set to a pressure suitable for the material but less than 100psi (7 bar). A manual lever valve between the cartridge and the syringe allows fluid flow and is switched off when the material reaches the desired level. This system does not require connection to a dispenser. It will run directly from a compressed air supply.

The barrel attachment assembly is threaded to accept all luer lock barrels. This version of loader has a metal body retainer and cap. If used with a foot pedal dispenser, the lever valve is removed and the dispenser controls ON/OFF mode.

Part ID: AD25MF
Materials: Stainless Steel/ Nylon
Capacity: 2.5oz (75cc/75ml)
Weight: 1kg
Max Pressure: 100 PSI (7 Bar)
Warranty: 12 Months

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

In sizes 75ml
Bottom fills syringes to reduce air
Supplied with component kits
Safe for use up to 100 psi
Quick and easy setup
Industrial grade safe
For pastes, gels, silicones and sealants
