1/10 gallon Syringe Filling Station AD1211M
Product Code: AD1211M
Price: £310.00
Description

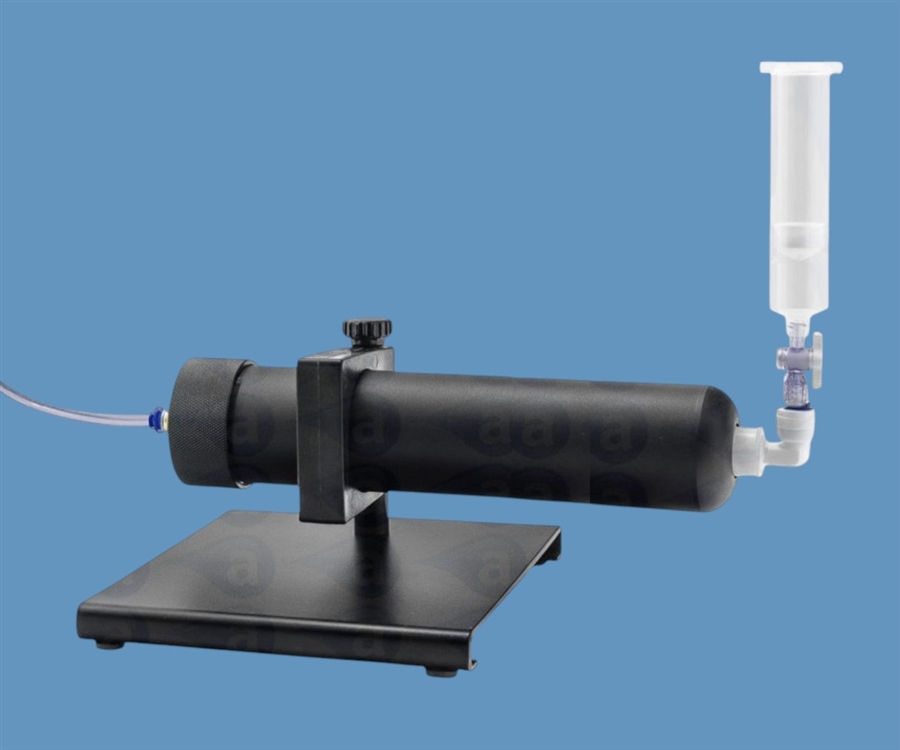

The model AD1211M loads a barrel directly from a 1/10 gallon (310ml) caulking tube silicone sealant cartridge. This barrel loader is connected to an air regulator or air powered dispenser and set to a pressure suitable for the material up to 100psi (7 bar). A basic manual lever valve fitting between the syringe barrel being filled from the 310ml cartridge allows material flow and is switched off when the material reaches the desired level. This system does not require connection to a dispenser but can be used with one if required. It will run directly from a compressed air supply.
The barrel attachment assembly is threaded to accept all luer lock barrels. This version of loader has a metal body retainer and cap. If used with a foot pedal air dispenser, the lever valve fitting is removed and the dispenser controls ON/OFF mode. System supplied includes the metal cartridge retainer sleeve, metal air cap, gasket, air fitting, airline hose with quick connect fitting, base stand, elbow fitting from cartridge, 310ml converter fitting, luer lock fitting, ON/OFF luer valve fitting.
The barrel attachment assembly is threaded to accept all luer lock barrels. This version of loader has a metal body retainer and cap. If used with a foot pedal air dispenser, the lever valve fitting is removed and the dispenser controls ON/OFF mode. System supplied includes the metal cartridge retainer sleeve, metal air cap, gasket, air fitting, airline hose with quick connect fitting, base stand, elbow fitting from cartridge, 310ml converter fitting, luer lock fitting, ON/OFF luer valve fitting.
Part ID: AD1211M
Materials: Steel/ Aluminium/ Reinforce Nylon
Capacity: 10oz/ 310cc/ 310ml or 1/10 Gallon Caulk
Weight: 1kg
Max Pressure: 100 PSI (7 Bar)
Warranty: 12 Months
Commodity Code: 90289090
Origin: UK
Brand: Adhesive Dispensing Ltd
Features
- For sizes 310ml, 1/10 gallon
- Bottom fills syringes to reduce air
- Supplied with component kits
- Safe for use up to 100 psi
- Quick and easy setup
- Industrial grade safe
- For pastes, gels, silicones and sealants
