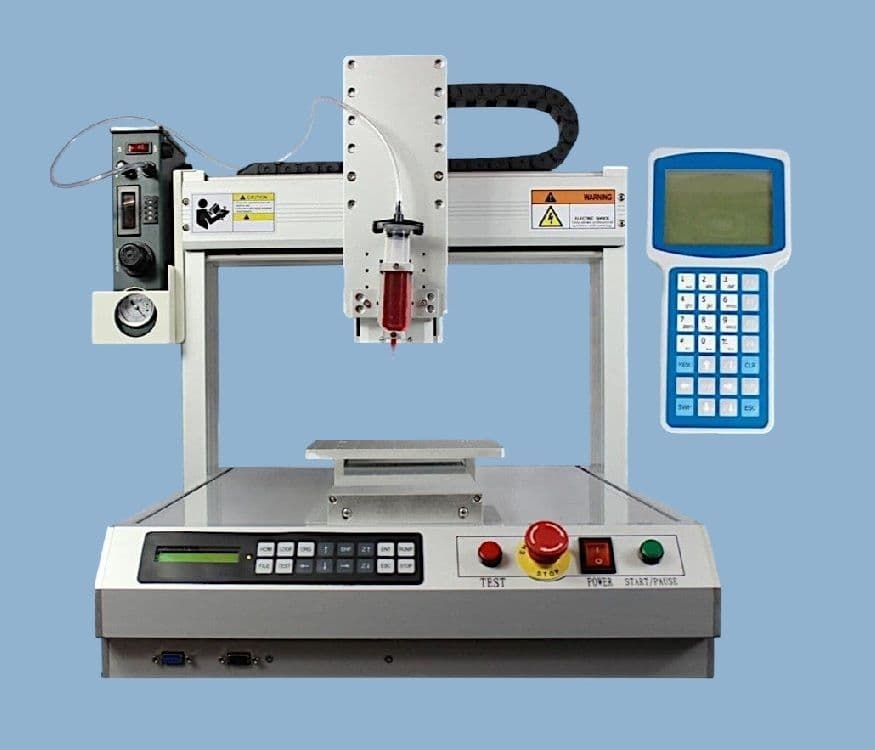

3 Axis Robot 400mm x 400mm x 100mm Model AD400A
Product Code: AD400
Price: £4,950.00
Description
A powerful desktop robot with a working area of 15.75" x 15.75" (400 x 400mm). Its reduced bench top footprint makes it an ideal robot for automating a dispensing application that may be currently performed manually. Programming is by teach-pendant, using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.
The 400 series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The 400 series are a compact, heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances. Systems will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, accurately to reduce waste, mess and hand fatigue.
Programming is simple with easy to follow english language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a timed pneumatic dispenser, I/O cable, teach pendant, power cables, airline hoses, syringe mounting bracket, 30cc/55cc barrel pack, tip pack, user guide.
The 400 series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The 400 series are a compact, heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances. Systems will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, accurately to reduce waste, mess and hand fatigue.
Programming is simple with easy to follow english language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a timed pneumatic dispenser, I/O cable, teach pendant, power cables, airline hoses, syringe mounting bracket, 30cc/55cc barrel pack, tip pack, user guide.
X/Y/Z Work area (mm): 400 / 400 / 100
Worktable load / Tool: 15 kg. / 6 kg.
Max. Speed X&Y / Z: 800 / 350 (mm/sec)
Repeatability: +/- 0.02mm/ Axis
Resolution: 0.01mm/ Axis
Data Memory: 999 Programs
4,000 points / program
Drive Sys. / Stepping motor: 3-phase
Motion Control: PTP & CP
Teaching Method: Teach Pendant
I/O signals: 4 inputs / 4 outputs
External Interface: RS232
Power Supply: AC 110-220V
Dimensions (WxDxH): 600 x 648 x 629
Weight: 45kg
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for form-in-place gaskets, adhesives, potting, coating and filling
- High resolution 0.001mm
- Performs continuous path and point-to-point motions
- Quick fluid-purge button located on front panel
- Step-and-repeat functions _ program one object only for multiple identical objects
- On board 999 programs, 900,000 point memory capacity
- 1 Year Warranty - CE Certified
