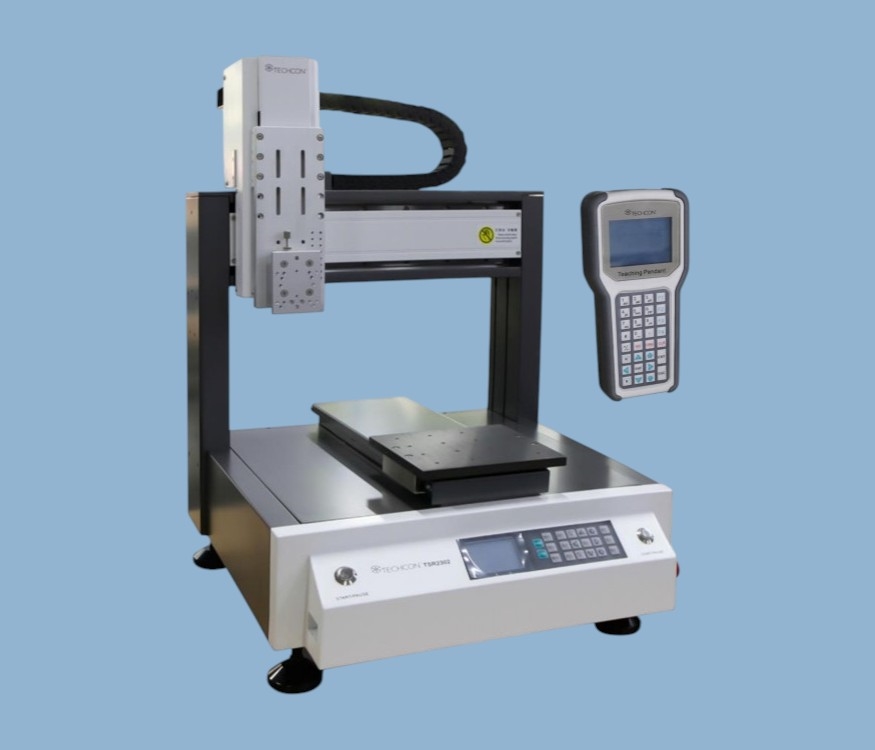

3 Axis Robot 300mm x 300mm x 100mm TSR2302E
Product Code: TSR2301
Price: £7,700.00
Description
|
Robots provide precise control over adhesive placement, from exact beads, to repeat timed dots or potting of components. Programming is simple via a teach pendant. Even complex patterns can be created simply. Storage is to internal flash memory allowing for up to 255 different programs to be created . Bench-top dispensing robots are easy to program, simple to operate and compatible with all valve types and controllers.Designed and configured specifically for fluid dispensing applications, the robots provide total control over fluid placement, from beads, arcs and circles to repeated timed dots. Programming is simple via a simple teach pendant. From a general assembly manufacturer looking to automate an existing dispensing application to an engineer designing a production process from scratch, dispensing robots offers unsurpassed value in automated precision fluid dispensing. The TSR2201 has a working area of 200mm X 200mm.Key Features and Benefits: Easy to program and simple to operate Programmable interface via teach pendant Fast, increase productivity Compatible with all syringes, valves and Jet dispensing systems. Suitable for wide range of fluid dispensing applications Rugged and reliable construction Small footprint Please note: no valves are included with the dispensing robot. The robot is setup with 30cc and 55cc syringe barrels including a bracket and slide. Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
|
|
|||||||||||||||||||
Features
- Ideal for form-in-place gaskets, adhesives, potting, coating and filling
- High resolution 0.001mm
- Performs continuous path and point-to-point motions
- Quick fluid-purge button located on front panel
- Software tip alignment routine for quick program offsets when changing dispensing tips
- USB connector allows system updates and program interchange between robots
- Step-and-repeat functions _ program one object only for multiple identical objects
- On board 255 programs, 30,000 point memory capacity
- Available without Teach Pendant for multiple installations
- 1 Year Warranty - CE Certified
