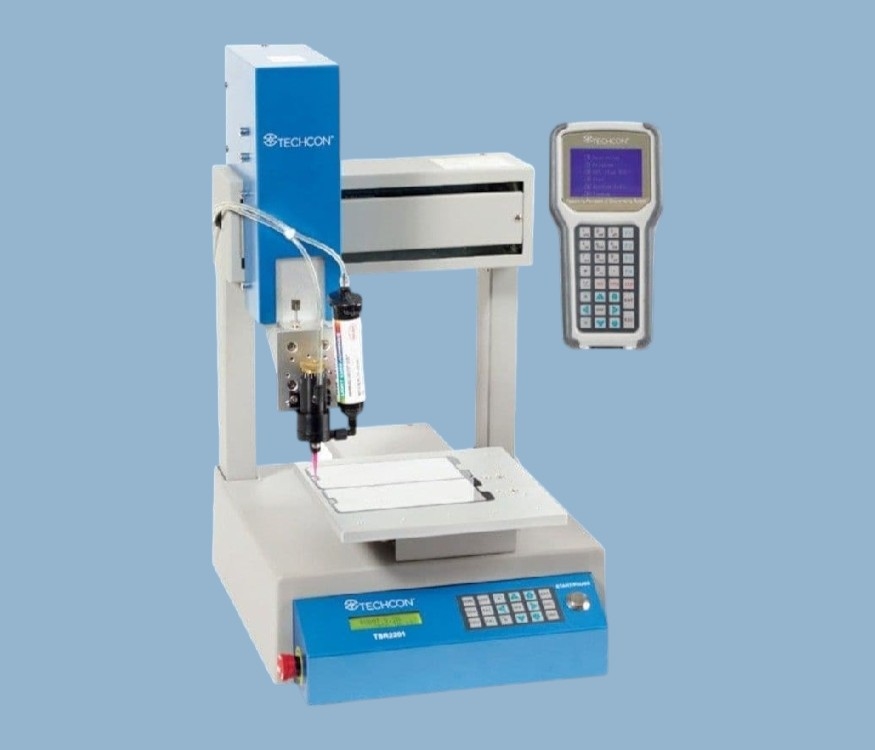

Desktop 3 axis robot 200mm x 200mm work area.

Description

Robots provide precise control over adhesive placement, from exact beads, to repeat timed dots or potting of components. Programming is simple via a teach pendant. Even complex patterns can be created simply. Storage is to internal flash memory allowing for up to 255 different programs to be created .

Bench-top dispensing robots are easy to program, simple to operate and compatible with all valve types and controllers.

Designed and configured specifically for fluid dispensing applications, the robots provide total control over fluid placement, from beads, arcs and circles to repeated timed dots. Programming is simple via a simple teach pendant. The price is for the robot, power cables, airline hose, LCD teach pendant, TS250 digital dispenser, syringe barrel mount bracket, CE start/ stop box, I/O cable, barrel kit, tip kit, user guide.

From a general assembly manufacturer looking to automate an existing dispensing application to an engineer designing a production process from scratch, dispensing robots offers unsurpassed value in automated precision fluid dispensing. The TSR2201 has a working area of 200mm X 200mm. Dual voltage 110V to 240V power so can be used globally.

Key Features and Benefits:
Easy to program and simple to operate
Programmable interface via teach pendant
Fast, increase productivity
Compatible with all syringes, valves and Jet dispensing systems.
Suitable for wide range of fluid dispensing applications
Rugged and reliable construction
Small footprint

Please note: optional valves and pressure pots are available for the dispensing robot. The basic robot is setup with 30cc and 55cc syringe barrels including a bracket and slide.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Applications

	Dotting
	Beading
	Potting
	Bonding
	Sealing
	Lubricating

Features

Ideal for form-in-place gaskets, adhesives, potting, coating and filling
High resolution 0.001mm
Performs continuous path and point-to-point motions
Quick fluid-purge button located on front panel
Software tip alignment routine for quick program offsets when changing dispensing tips
USB connector allows system updates and program interchange between robots
Step-and-repeat functions _ program one object only for multiple identical objects
On board 255 programs, 30,000 point memory capacity
Available without Teach Pendant for multiple installations
1 Year Warranty - CE Certified

3 Axis Robot 200mm x 200mm x 100mm Model TSR2201

3 Axis Robot 200mm x 200mm x 100mm Model TSR2201
