Description

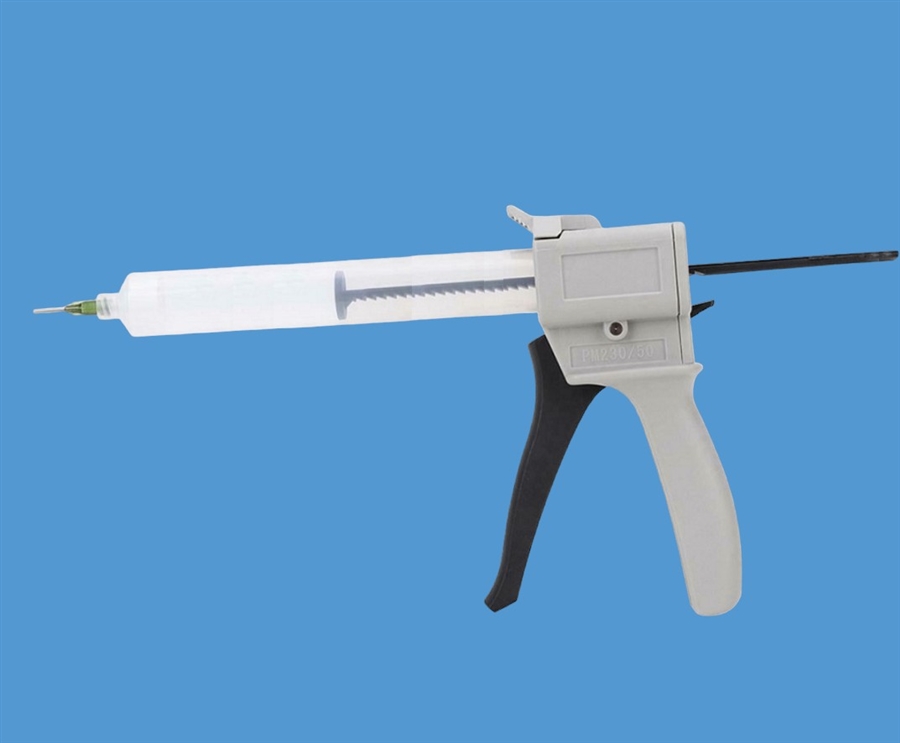

Syringe Gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. A cost effective quality made syringe dispensing gun for use with standard 55cc/ 55ml size syringe barrels. Ideal for low volume production, re-work or repair work.
Syringe Guns offer a low cost dispensing solution for most medium to high viscosity pastes, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser for applying most fluids. Simple 7:1 ratio leverage for effortless trigger movement. The rod moves 3mm (1/8") once pressed to provide repeat deposits without drips or ooze.
Barrels are attached to the syringe gun using wide flanges. This ensures the barrel does not break under constant use or hand pressure. All products ship direct from stock.
Materials: Polypro/ Nylon
Capacity: 55cc or 55ml
Length: 195mm (including rod)
Height: 125mm
Weight: 110 grams (without barrel)
Colour: Grey Handle/ Black Trigger/ plunger
Warranty: 1 Year
This product is shipped with the following:
20 x 55cc clear barrel
20 x 55cc white wiper piston
20 x 55cc red end cap
20 x orange tip cap
10 x 14 gauge tapered tip olive
10 x 16 gauge tapered tip grey
5 x 18 gauge tapered tip green
5 x 20 gauge tapered tip pink
5 x 22 gauge tapered tip blue
5 x 14 gauge general purpose tip 1/2"
5 x 15 gauge general purpose tip 1/2"
5 x 18 gauge general purpose tip 1/2"
Order part code AD755SG if gun only is required. Suitable materials proven to work with
this gun include solder pastes, solder fluxes, PVA glues, RTV's,
silicones, sealants, greases, SMT adhesives, pre-mixed and frozen
epoxies, single part epoxies, gels, adhesives, primers, inks and other
assembly fluids
.
Guns are portable and can be used in a factory production or assembly department as well as for repair and re-work. Guns are commonly used in the field for repair or maintenance applications. Common applications include:-
Deposits of solder paste
Deposits of solder flux
Grease to lubricate bearings
PVA glue to small furniture joints
RTV to seal cases
Silicone deposits and beads
Gasket sealant and silicone repair
Shots of roach insecticides
General adhesive application
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Includes syringe, piston, caps and tip
- Easy hand lever leverage
- Controlled deposit or bead
- Lightweight robust construction
- Quick syringe attachment
- Low cost dispensing solution
