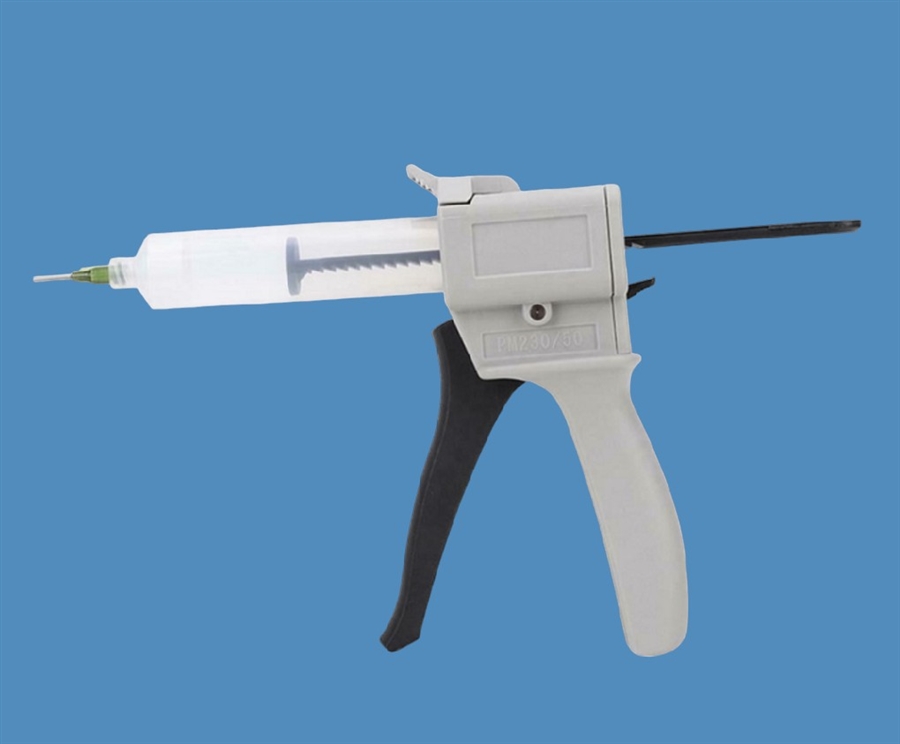

30cc Manual Syringe Gun with Kit AD730SG-KIT
Product Code: AD730SG-KIT
Price: £41.00
Description
Syringe Gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. A cost effective quality made syringe dispensing gun for use with standard 30cc/ 30ml size syringe barrels. Ideal for low volume production, re-work or repair work.
Syringe Gun dispensers offer a low cost dispensing solution for most medium to high viscosity pastes, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser for applying most fluids. Simple 7:1 ratio leverage for effortless trigger movement. The rod moves 3mm (1/8") once pressed to provide repeat deposits without drips or ooze.
Barrels are attached to the syringe gun using wide flanges. This ensures the barrel does not break under constant use or hand pressure. All products ship direct from stock.
This product is shipped with the following:
20 x 30cc barrel (clear, amber or black)
20 x 30cc white wiper piston
20 x 30cc red end cap
20 x orange tip cap
10 x 14 gauge tapered tip olive
10 x 16 gauge tapered tip grey
5 x 18 gauge tapered tip green
5 x 20 gauge tapered tip pink
5 x 22 gauge tapered tip blue
5 x 14 gauge general purpose tip 1/2"
5 x 15 gauge general purpose tip 1/2"
5 x 18 gauge general purpose tip 1/2"
Order part code AD730SG-KIT if a full component kit is required. Suitable materials proven to work with this gun include solder pastes, solder fluxes, PVA glues, RTV's, silicones, sealants, greases, SMT adhesives, pre-mixed and frozen epoxies, single part epoxies, UV cure, gels, adhesives, primers, inks and other assembly fluids .
Guns are portable and can be used in a factory production or assembly department as well as for repair and re-work. Guns are commonly used in the field for repair or maintenance applications. Common applications include:-
Deposits of solder paste
Deposits of solder flux
Grease to lubricate bearings
PVA glue to small furniture joints
RTV to seal cases
Silicone deposits and beads
Gasket sealant and silicone repair
Shots of roach insecticides
General adhesive application
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Syringe Gun dispensers offer a low cost dispensing solution for most medium to high viscosity pastes, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser for applying most fluids. Simple 7:1 ratio leverage for effortless trigger movement. The rod moves 3mm (1/8") once pressed to provide repeat deposits without drips or ooze.
Barrels are attached to the syringe gun using wide flanges. This ensures the barrel does not break under constant use or hand pressure. All products ship direct from stock.
Specifications:
Weight: 0.1kg
Gun Length: 175.0mm
Maximum Thrust: 1.5kN
Handle Material: Glass Filled Nylon
Frame Material: Glass Filled Nylon
Tool Component Approvals: REACH
Cartridge Capacity: 30mL (30cc)
Mechanical Advantage Ratio: 7:1
Viscosity: Low/Medium
Standard Colour: Grey/Black
Warranty: 1 Year
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Weight: 0.1kg
Gun Length: 175.0mm
Maximum Thrust: 1.5kN
Handle Material: Glass Filled Nylon
Frame Material: Glass Filled Nylon
Tool Component Approvals: REACH
Cartridge Capacity: 30mL (30cc)
Mechanical Advantage Ratio: 7:1
Viscosity: Low/Medium
Standard Colour: Grey/Black
Warranty: 1 Year
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
This product is shipped with the following:
20 x 30cc barrel (clear, amber or black)
20 x 30cc white wiper piston
20 x 30cc red end cap
20 x orange tip cap
10 x 14 gauge tapered tip olive
10 x 16 gauge tapered tip grey
5 x 18 gauge tapered tip green
5 x 20 gauge tapered tip pink
5 x 22 gauge tapered tip blue
5 x 14 gauge general purpose tip 1/2"
5 x 15 gauge general purpose tip 1/2"
5 x 18 gauge general purpose tip 1/2"
Order part code AD730SG-KIT if a full component kit is required. Suitable materials proven to work with this gun include solder pastes, solder fluxes, PVA glues, RTV's, silicones, sealants, greases, SMT adhesives, pre-mixed and frozen epoxies, single part epoxies, UV cure, gels, adhesives, primers, inks and other assembly fluids .
Guns are portable and can be used in a factory production or assembly department as well as for repair and re-work. Guns are commonly used in the field for repair or maintenance applications. Common applications include:-
Deposits of solder paste
Deposits of solder flux
Grease to lubricate bearings
PVA glue to small furniture joints
RTV to seal cases
Silicone deposits and beads
Gasket sealant and silicone repair
Shots of roach insecticides
General adhesive application
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Includes syringe, piston, caps and tip
- Easy hand lever leverage
- Controlled deposit or bead
- Lightweight robust construction
- Quick syringe attachment
- Low cost dispensing solution
