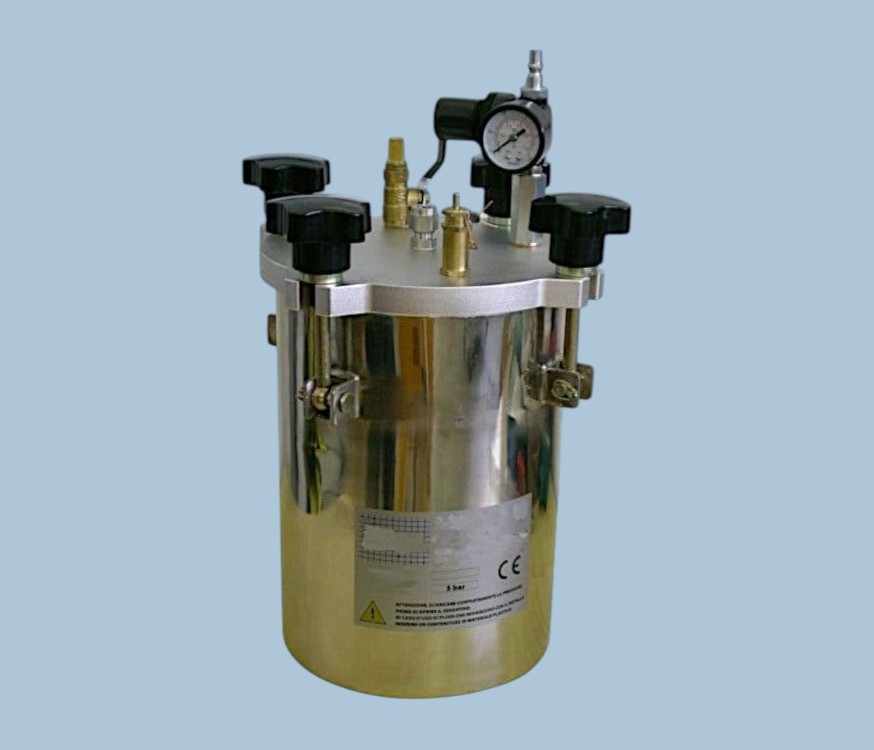

5 Litre Pressure Pot 0-75 psi Level Sensor TS2250LS
Product Code: TS2250LS
Price: £990.00
Description
The TS2250LS pressure pot is designed to accommodate many solvents and assembly fluids, as well as cyanoacrylate adhesives and UV cure adhesives straight out of the manufacturers glue bottles or with liquids poured into the chamber and using an optional tank liner. It has a stainless steel compression fitting for a continuous fluid tube path from inside the pot to the point of use (often a dispensing valve) but other tubing fittings are available. Airtight seals ensure no leakage or air entrapment problems. 75 psi operating air pressure easily handles fluid with viscosity up to 35,000 CPS.
The pressure gauge and pressure regulator are located on top for easy reading and access. When dispensing adhesives, a container or bottle or liner should be placed inside the tank chamber. Do not pour adhesives directly into the pot unless using a polyethylene or aluminium replaceable tank. Main tank body is stainless steel and the lid is aluminium. The low level sensor makes it possible to receive an electric signal when the fluid level in the tank reaches 20-30% allowing the user to refill before empty.
Material: Stainless Steel Body/ Aluminium Cap
O-Ring Material: EPR Rubber
Colour: Silver and Blue
Outer Diameter Width: 180mm
Overall Height: 380.1mm
Inner Chamber Width: 162.3mm
Inner Chamber Height: 241.2mm
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet: 6mm Air Pipe Push-Fit or 1/4" NPT Thread
Fluid Outlet: 6x8mm or 6x4mm Tube Diameters (located centre of tank lid)
Weight: 5.0 kg
Max Pressure: 75 psi (5 BAR) - safety valve set at 5 bar
Warranty: 1 Year
Details: CE certified and Rohs compliant
The pressure gauge and pressure regulator are located on top for easy reading and access. When dispensing adhesives, a container or bottle or liner should be placed inside the tank chamber. Do not pour adhesives directly into the pot unless using a polyethylene or aluminium replaceable tank. Main tank body is stainless steel and the lid is aluminium. The low level sensor makes it possible to receive an electric signal when the fluid level in the tank reaches 20-30% allowing the user to refill before empty.
Material: Stainless Steel Body/ Aluminium Cap
O-Ring Material: EPR Rubber
Colour: Silver and Blue
Outer Diameter Width: 180mm
Overall Height: 380.1mm
Inner Chamber Width: 162.3mm
Inner Chamber Height: 241.2mm
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet: 6mm Air Pipe Push-Fit or 1/4" NPT Thread
Fluid Outlet: 6x8mm or 6x4mm Tube Diameters (located centre of tank lid)
Weight: 5.0 kg
Max Pressure: 75 psi (5 BAR) - safety valve set at 5 bar
Warranty: 1 Year
Details: CE certified and Rohs compliant
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 75 psi - High operating pressure
- Fluid Outlet Port - On the lid for easy access
- Two Handles - For easy removal of lid
- Four knobs to open/close lid - For positive and uniform seal
- Pressure Gauge - Located on top for easy reading
- Pressure Regulator - Located on top for ease of access
- Relief Valve with Pull Ring - To depressurise after usage
- Disposable polyethylene - Fluid lines can be changed quickly
- Ferrule - Disposable with tubing eliminates cleanup
- Hose Kit - Supplied with tank
- Tube Sizes - 1/4", 3/8" and 4mm fittings available
