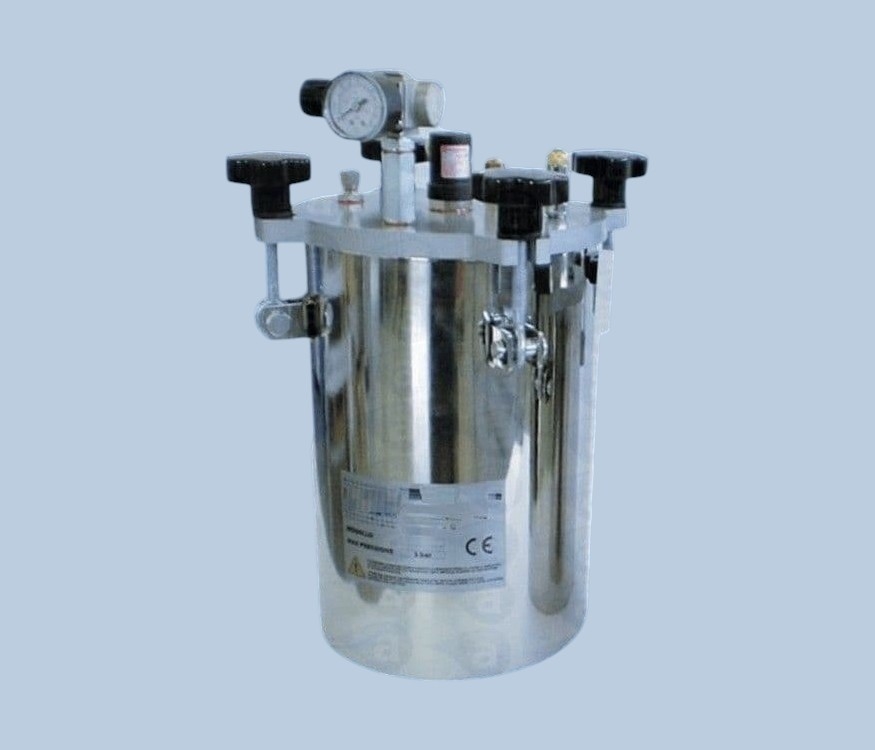

TS2220LS Pressure Pot 2 Litre Tank Adhesive Dispensing Ltd

Description

The TS2220LS Pressure Pot (pressure up to 75 psi) is designed to accommodate solvents and adhesives, as well as UV's. It will also accommodate clear and black fittings and tubing in 1/4, 3/8, and 4mm, with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use.

Airtight seals ensure no leakage or air entrapment problems. 75 psi operating pressure easily handles fluid with viscosity up to 30,000 CPS. Disposable polyethylene dip tube can be quickly changed. The pressure gauge and pressure regulator are located on top for easy reading and access. Includes fluid line connector kit.

When dispensing adhesives, a container or bottle is best placed inside the tank chamber. Do not pour curable adhesives directly into the pot. Non curing liquids are OK. Main tank body is stainless steel and the lid is aluminium. This version has the electric level sensor built-in.

Material: Stainless Steel/ Aluminium
Colour: Silver
Outer Size: 190 W X 318mm H
Inner Chamber: 123mm I.D. x 190mm H
Weight: 4.5kg
Max Pressure: 75 psi (5 BAR)
Warranty: 1 Year

75 psi - High operating pressure
Fluid Outlet Port - On the lid for easy access
Two Handles - For easy removal of lid
Four knobs to open/close lid - For positive and uniform seal
Pressure Gauge - Located on top for easy reading
Pressure Regulator - Located on top for ease of access
Relief Valve with Pull Ring - To depressurise after usage
Disposable polyethylene - Fluid lines can be changed quickly
Hose Kit - Supplied with tank

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

75 psi - High operating pressure
Fluid Outlet Port - On the lid for easy access
Two Handles - For easy removal of lid
Four knobs to open/close lid - For positive and uniform seal
Pressure Gauge - Located on top for easy reading
Pressure Regulator - Located on top for ease of access
Relief Valve with Pull Ring - To depressurise after usage
Disposable polyethylene - Fluid lines can be changed quickly
Ferrule - Disposable with tubing eliminates cleanup
Hose Kit - Supplied with tank
Tube Sizes - 1/4", 3/8" and 4mm fittings available
