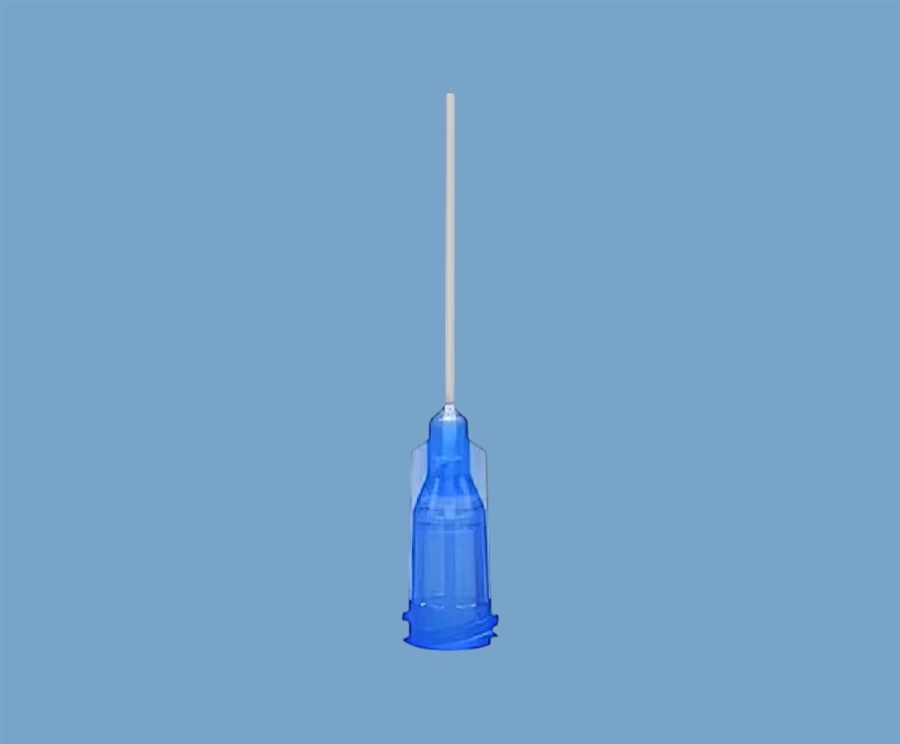

22 Gauge 1" Polypro Tip Blue 3122PP-1X pk/1000
Product Code: 3122PPS-1X
Price: £245.00
Description
Offering the widest range of dispensing tips for use with syringe barrels, hand bottles, metering valves and robots. All tips are industrial grade safe for use to 100 psi air pressures and are certified silicone-free. Luer lock secure attachment for leak free dispensing.
Polypropylene tips feature a colour coded plastic double helix locking hub, with polypropylene tubing based on gauge size. They are offered in 1.0 inch tube lengths. These tips are excellent for dispensing into small areas or through holes. The luer locking thread prevents the tip from working loose under pressure.
Flexible needle tips for use with most fluids and especially good for reactive adhesives and moisture sensitive fluids such as cyanoacrylate instant glues and most solvent based fluids. A flexible 22 gauge polypropylene double helix luer lock tip suited to dispensing cyanoacrylates, solvents, primers, activators and other adhesives. Blue colour coded hub with white flexible shaft - can also be cut to length if required. Certified silicone-free and industrial grade safe to 100 psi. Supplied in sealed packs of 1000.
Part ID: 3122PP-1
Material: Polypropylene
Colour: Blue Hub/ White Tube Shaft
Inner Diameter: 0.016" (0.41mm)
Outer Diameter: 0.028" (0.73mm)
Tube Lengths: 1.0" (25.4mm)
Connection: Luer Lock
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Pack Size: 1000
Tips are designed to work with all luer lock and luer slip syringe barrels and fittings. They are fully compatible with most fluids, adhesives, liquids and gels. Polypro tips work well with inks, primers, activators, solvents, anaerobics and cyanoacrylates.
Air-Powered Dispensers * Industrial Dispensing Components * Precision Dispense Valve Systems * XYZ Bench Robots * Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles
Features
- Gauge sizes 14 to 25 colour coded hubs
- Lengths of 1" can be cut if required
- Helix locking threads secure attachment
- Polypropylene will not scratch surface
- Ideal for cyanoacrylates and solvents
- Replacement for CTLL tips
- In packs of 50 or bulk quantities
- High quality dispensing tips
