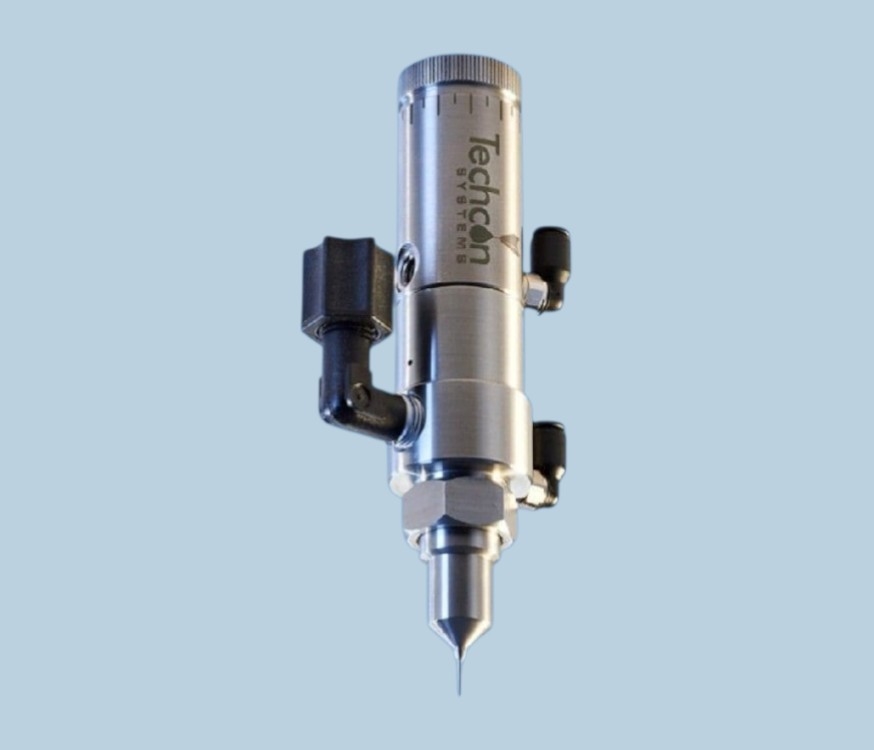

Stainless Spray Valve Micro Needle TS5540-MS
Product Code: TS5540-MS
Price: £1,403.00
Description
The TS5540-MS spray valve is designed to spray low to medium viscosity fluids through disposable dispensing tips. This innovative design enables the valve to produce uniform spray patterns ranging from 0.180 Inch to 0.60 Inch (4.6mm to 15.0mm) in diameter. The TS5540-MS spray valve has a field replaceable UHMWPE seat (seal) to provide positive shut-off and extend the valve life cycle.
The smooth fluid path reduces turbulent flow and reduces air entrapment to ensure precise and repeatable spray patterns. The stainless steel fluid housing and air cylinder make the valve compatible with a wide range of aggressive and non aggressive spray fluids. The compact design and the threaded mounting hole allow the valve to be easily integrated into most automated applications. Typical Applications: Coating, lubricant, activators, marking inks, liquids fluxes, solvents.
MPN: TS5540-MS
Length: 4/7 Inch (119mm)
Diameter: 1.12 Inch (28.5mm)
Weight: 0.73 lb (331g)
Wetted Parts: 303 Stainless steel, Teflon, UHMWPE
Fluid Inlet Port: 1/8 Inch NPT Female
Air Inlet Port: 10-32 UNF-2B
Atomize Air Inlet Port: 10-32 UNF-2B
Mounting Port: 1/4-20 UNF
Activation Air Pressure: 70 psi (4.8 bar) min.
Fluid Pressure: 100 psi (6.9 bar) max.
Operating Frequency: Exceeds 400 cycles/min.
Commodity Code: 84248940
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The smooth fluid path reduces turbulent flow and reduces air entrapment to ensure precise and repeatable spray patterns. The stainless steel fluid housing and air cylinder make the valve compatible with a wide range of aggressive and non aggressive spray fluids. The compact design and the threaded mounting hole allow the valve to be easily integrated into most automated applications. Typical Applications: Coating, lubricant, activators, marking inks, liquids fluxes, solvents.
MPN: TS5540-MS
Length: 4/7 Inch (119mm)
Diameter: 1.12 Inch (28.5mm)
Weight: 0.73 lb (331g)
Wetted Parts: 303 Stainless steel, Teflon, UHMWPE
Fluid Inlet Port: 1/8 Inch NPT Female
Air Inlet Port: 10-32 UNF-2B
Atomize Air Inlet Port: 10-32 UNF-2B
Mounting Port: 1/4-20 UNF
Activation Air Pressure: 70 psi (4.8 bar) min.
Fluid Pressure: 100 psi (6.9 bar) max.
Operating Frequency: Exceeds 400 cycles/min.
Commodity Code: 84248940
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Uses disposable dispensing tips as spray nozzles to produce miniature spray patterns
- Precise and consistent spray coverage
- Positive shut-off
- Field replaceable wear and tear parts
- Compatible with aggressive fluids
- Long life cycle
- Low cost of ownership
