Mix Nozzle 2.5mm ID x 12 EL 114249 pk/100
Product Code: MKH02-12S
Price: £40.00
Description

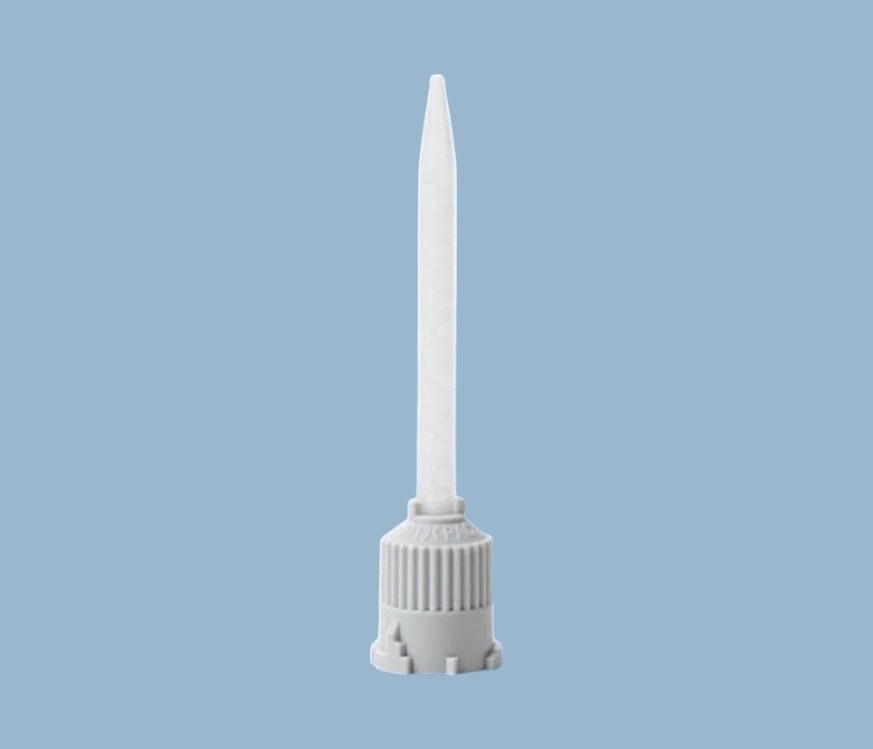

Small Shot Mixer Nozzles for Two-Component Adhesives
The K system dual syringes are ideal for one shot or small volume dispensing of fully mixed materials. This part code is for the static mixer nozzle used with the 1:1 ratio sets only. Light grey collar. Natural body with white mix elements.
12 mix elements - 2.5mm ID. Overall nozzle length 49.7mm. Volume of retained material is 0.23ml. Supplied in sealed packs of 100 nozzles.
Specifications:
Part ID: 114249 (MKH 02-12S)
Material: Polypropylene
Colour: Natural Body, Grey Cap, White Elements
Length: 49.7mm
ID: 2.5mm
Elements: 12
Volume: 0.23ml
Ratio: 1 to 1 By Volume Only
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Medmix (Sulzer Mixpac)
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The K system dual syringes are ideal for one shot or small volume dispensing of fully mixed materials. This part code is for the static mixer nozzle used with the 1:1 ratio sets only. Light grey collar. Natural body with white mix elements.
12 mix elements - 2.5mm ID. Overall nozzle length 49.7mm. Volume of retained material is 0.23ml. Supplied in sealed packs of 100 nozzles.
Specifications:
Part ID: 114249 (MKH 02-12S)
Material: Polypropylene
Colour: Natural Body, Grey Cap, White Elements
Length: 49.7mm
ID: 2.5mm
Elements: 12
Volume: 0.23ml
Ratio: 1 to 1 By Volume Only
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Medmix (Sulzer Mixpac)
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Simple click connection to cartridges
- Use with 1:1 ratio cartridges
- Reusable part
- In sealed packaging
