Mix Nozzle 6mm ID x 18 EL MFH06-18T pk/100
Product Code: MFH06-18T
Price: £101.00
Description

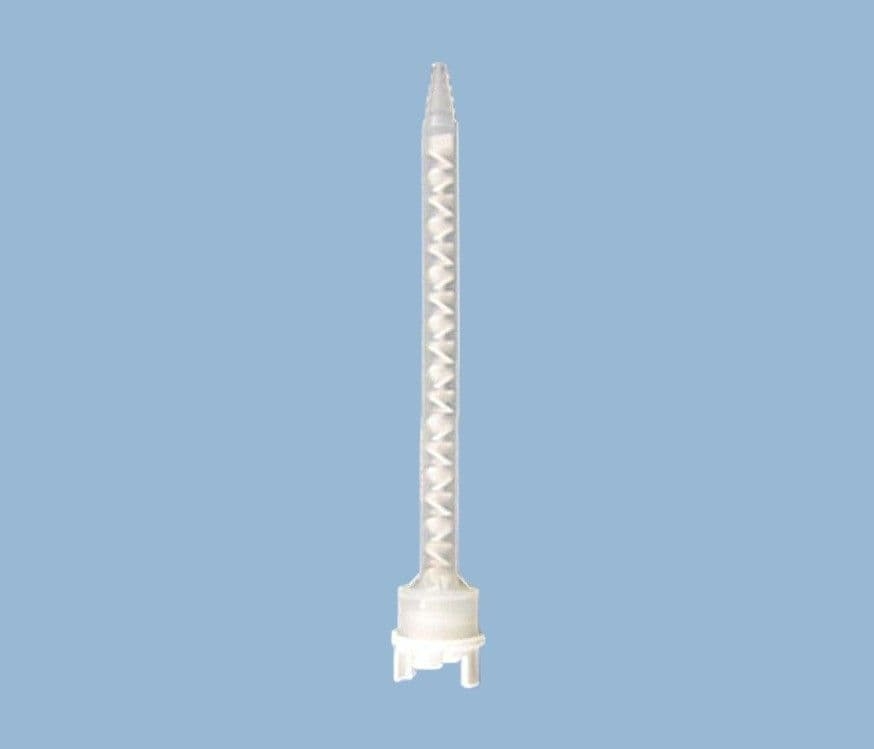

Dual hole inlet, helical static mixer for 200ml and 400ml dual component F-System epoxy type cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with luer adapter and any luer lock needle tips.
These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 6.00mm ID x 18 mixing elements. Supplied in a sealed pack of 100 nozzles. Use with F System dual cartridges as shown in image 3.
Part ID: MFH 06-18T - 102466
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 6.0mm
Outer Diameter: 10mm
Orifice Hole Size: 1.80mm
Length: 156mm
Volume in Nozzle: 4.36ml
Elements: 18
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix
Pack Size: 100
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 6.00mm ID x 18 mixing elements. Supplied in a sealed pack of 100 nozzles. Use with F System dual cartridges as shown in image 3.
Part ID: MFH 06-18T - 102466
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 6.0mm
Outer Diameter: 10mm
Orifice Hole Size: 1.80mm
Length: 156mm
Volume in Nozzle: 4.36ml
Elements: 18
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix
Pack Size: 100
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
