25ml dual cartridge sets 1:1 ratio 116649 pk/50
Product Code: AB025-01-30-01
Price: £44.00
Description

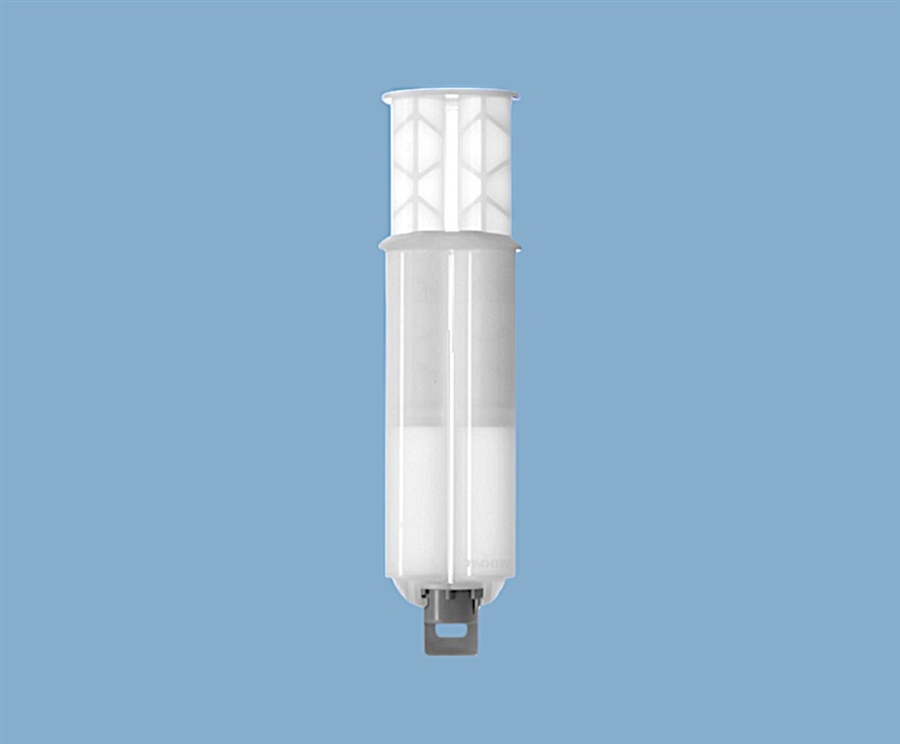

Manual Syringe Sets for Two-Component Adhesives
The B system dual system is available in 25ml and 50ml sizes. The 25ml is available in 1:1 mix ratio and takes a variety of mixer nozzles. Resin and catalyst are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.
The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use, without the material curing. Packs include the cartridge, wiper pistons and cap seals.
Dual cartridges are supplied in different pack sizes and include tip cap seals pre-attached with the correct number and ratio pistons. Sets are supplied ready to use. This part code is for the syringes, pistons and plunger rod in the same box.
Part ID: AB025-01-30-01
Material: PA (Polyamide)
Colour: White Syringe/ Pistons/ Natural Plunger Rod
Size: 25ml (12.5ml + 12.5ml)
Ratio: 1:1 (by volume)
Outlet: B system nozzle attachment
Details: Industrial grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac MedMix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The B system dual system is available in 25ml and 50ml sizes. The 25ml is available in 1:1 mix ratio and takes a variety of mixer nozzles. Resin and catalyst are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.
The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use, without the material curing. Packs include the cartridge, wiper pistons and cap seals.
Dual cartridges are supplied in different pack sizes and include tip cap seals pre-attached with the correct number and ratio pistons. Sets are supplied ready to use. This part code is for the syringes, pistons and plunger rod in the same box.
Part ID: AB025-01-30-01
Material: PA (Polyamide)
Colour: White Syringe/ Pistons/ Natural Plunger Rod
Size: 25ml (12.5ml + 12.5ml)
Ratio: 1:1 (by volume)
Outlet: B system nozzle attachment
Details: Industrial grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac MedMix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Self-venting lip seal
- Manual assembly
- Supplied with caps & plungers
- In sealed packaging
- Quick nozzle attachment
