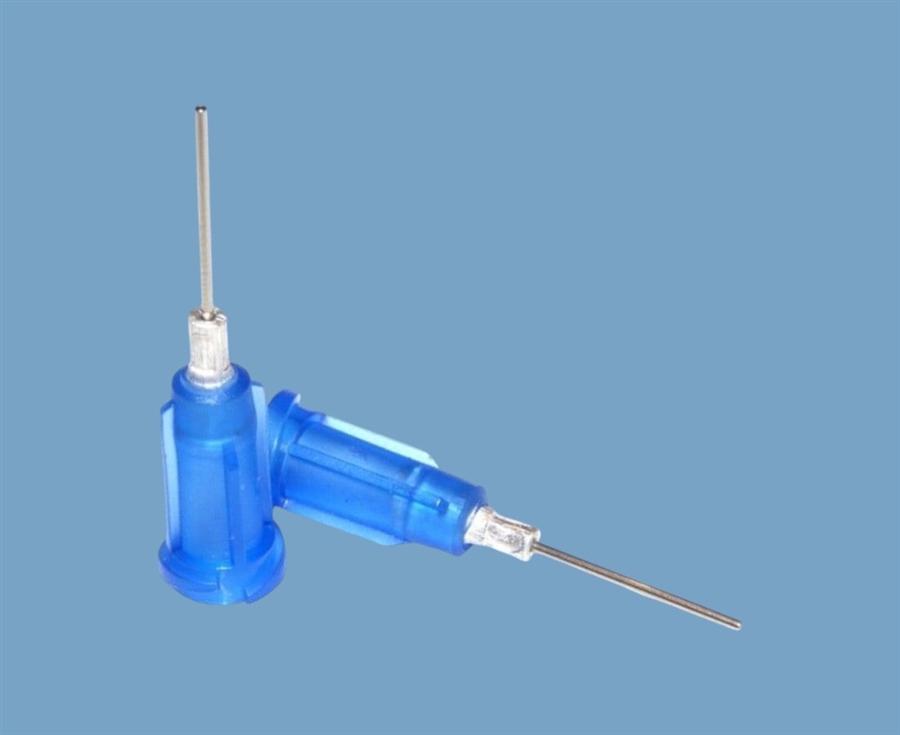

22 Gauge 0.5" Long Tip Crimped TES22050 pk/50
Product Code: TES22050
Price: £10.00
Description
The TES Series dispensing tips offer a variety of dispensing performance and flexibility options. Stainless steel tubing is cut to precise lengths and ground to be burr-free. Cut tubing is crimped into aluminium locking insert, then moulded into polypropylene hubs.
Moulded hub colours correspond to gauge size. All TES Series tips secure to syringe barrels and correspond to the luer lock specification. Tips are colour coded for gauge size. The hub is opaque and does not allow light to affect the adhesive being dispensed. And crimped rather than a glued construction ensures these tips are not as quickly affected by use of solvents.
The tip uses a slightly tapered internal design where the shaft joins the hub to ease fluid flow and reduce restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. Supplied in a sealed box of 50 tips.
Materials: Polypropylene/ Stainless Steel
Hub Colour: Blue
Inner Diameter: 0.016" - 0.41 mm
Outer Diameter: 0.028" - 0.71 mm
Tube Length: 0.5" - 12.70 mm Tip
Details: Industrial Grade, Silicone Free. Chloride Free
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Precision burr free tubing - high quality performance
- Silicone free - will not contaminate fluids
- Safe for use up to 100 psi - high pressure dispensing
- Luer lock colour coded hubs - easily identify gauge size
- Crimped shaft to hub - will withstand solvents
- Opaque hub - suitable for use with UV cure adhesives
