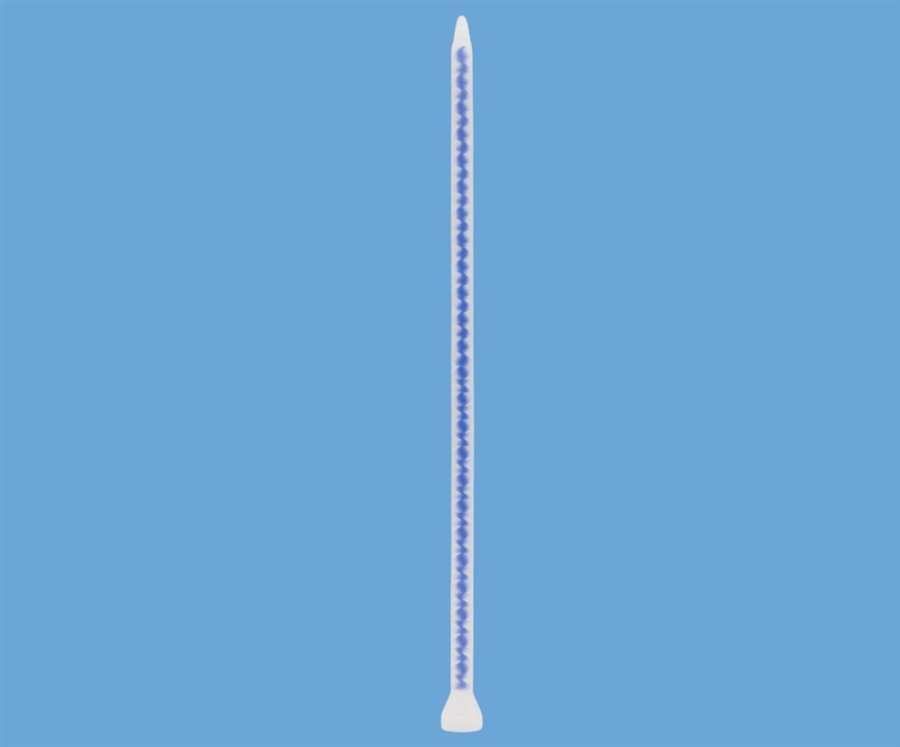

ME-Series (Blue) Static Mixers for Meter-Mix Systems

Static Mixers attach to both meter, mix, and dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.

Part ID: ME 06-48T - 102452
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Blue Elements
Inner Diameter: 6.4mm
Outer Diameter: 11mm
Mixer Length: 334mm
Nozzle Tip Diameter: 1.5mm
No. of Elements: 48
Retaining Method: 15.9mm Bell Mouth
Material Volume: 10.0ml
Max. Pressure: 30 BAR (435 PSI)
Commodity Code: 39269090
Origin: Europe
Brand: Sulzer Mixpac MedMix

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard for mix machines
Silicone-free plastics
Safe for use to 100 psi
Stepped nozzle end
Supplied in sealed packs of 100
