Description
Cartridge Sets for Two-Component Adhesives F-System
The dual system is available in 50ml, 200ml and 400ml sizes. All 3 systems - 50ml, 200ml and 400ml, are available in 1:1, 2:1, 4:1 and 10:1 mix ratios and take a variety of mixer nozzles. Both components are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.
The
F-System meets the continuously growing industry demand for reliable, safe and
easy to use application systems for 2-component adhesives and sealants. This
system is manufactured from high quality, chemical resistant plastics to meet
stringent shelf-life stability and metering requirements for your formulated
products. With side-by-side outlets and a coded cap, no longer will the
applicator worry about cross-contamination during storage and dispensing.
Moreover, the unique design of our system meets the established UN packaging
standards to ensure the utmost in transport safety.
By having
complementary components, the F-System offers the formulator the unique ability
to standardize application systems across a broad range of 2-component
adhesives and sealants while ensuring a leak-free connection to the mixer. The
F-System components deliver accurate metering, homogenous mixing and
fatigue-free dispensing in a user-friendly application system.
The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use, without the material curing. Packs include the cartridge, wiper pistons and cap seals. Compatible with industry standard guns.

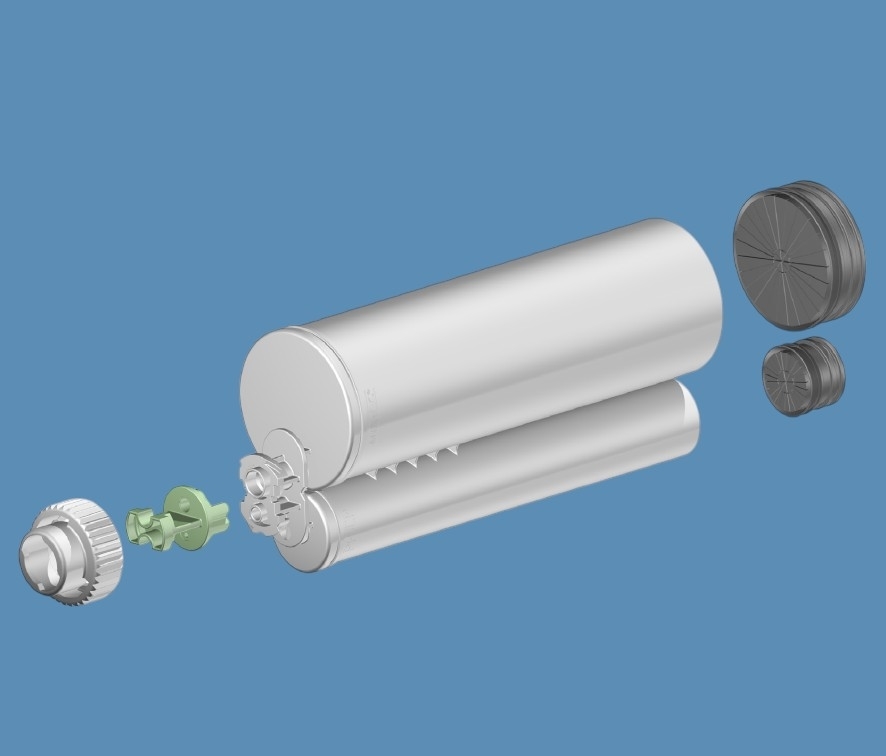

Dual cartridges are supplied in packs of 50 and include tip cap seal and threaded collar as well as 100 of the correct sized pistons.
Part ID: 112397
Material: Polybutylene terephthalate (PBT)
Colour: White
Cartridge/ White Piston/ White Cap
Size: 400ml
Mix Ratio: 4:1
(by volume)
Maximum Pressure: 100 PSIOutlet: Dual hole to nozzle attachment
Details: Industrial grade, Silicone Free
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Silicone free plastics
- Industrial grade safe to 100 psi
- Supplied with pistons and caps
- In sealed packaging
- Quick nozzle attachment
