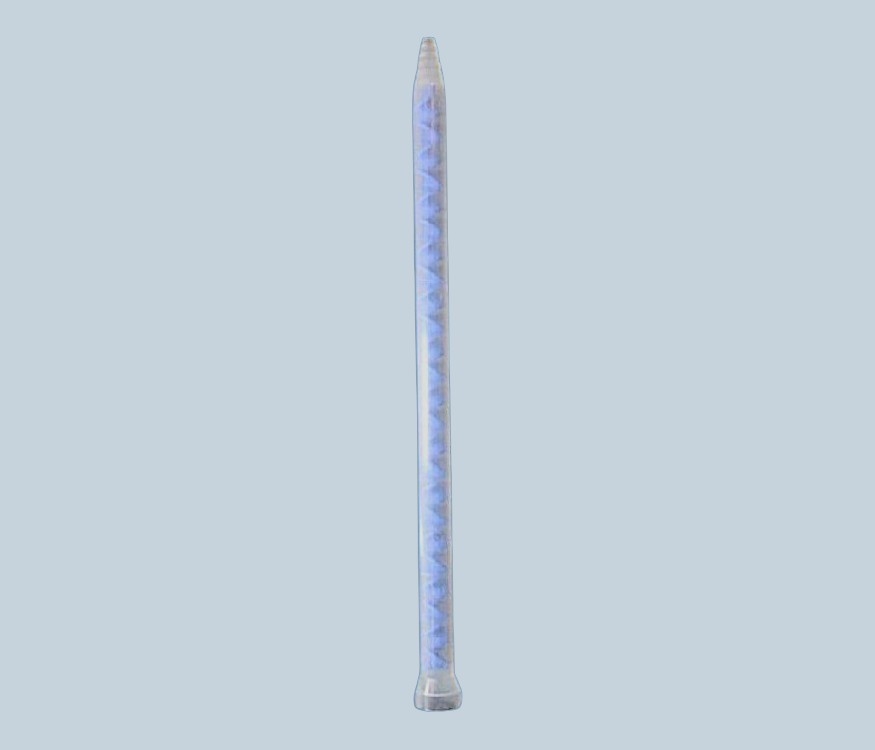

ME-Series (Blue) Static Mixers for Metering-Mix Systems

Static Mixers attach to both meter, mix, and dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.

Part ID: ME 08-32T - 102454
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Blue Elements
Inner Diameter: 8.0mm
Outer Diameter: 11.8mm
Mixer Length: 289mm
Nozzle Tip Diameter: 2.4mm
No. of Elements: 32
Retaining Method: 15.9mm bell mouth
Material Volume: 12.3ml
Max. Pressure: 27 BAR (391 PSI)
Brand: Sulzer Mixpac Medmix
Origin: Europe

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard for mix machines
Silicone-free Safe for use to high pressure Stepped nozzle end
Supplied in sealed packs of 100
