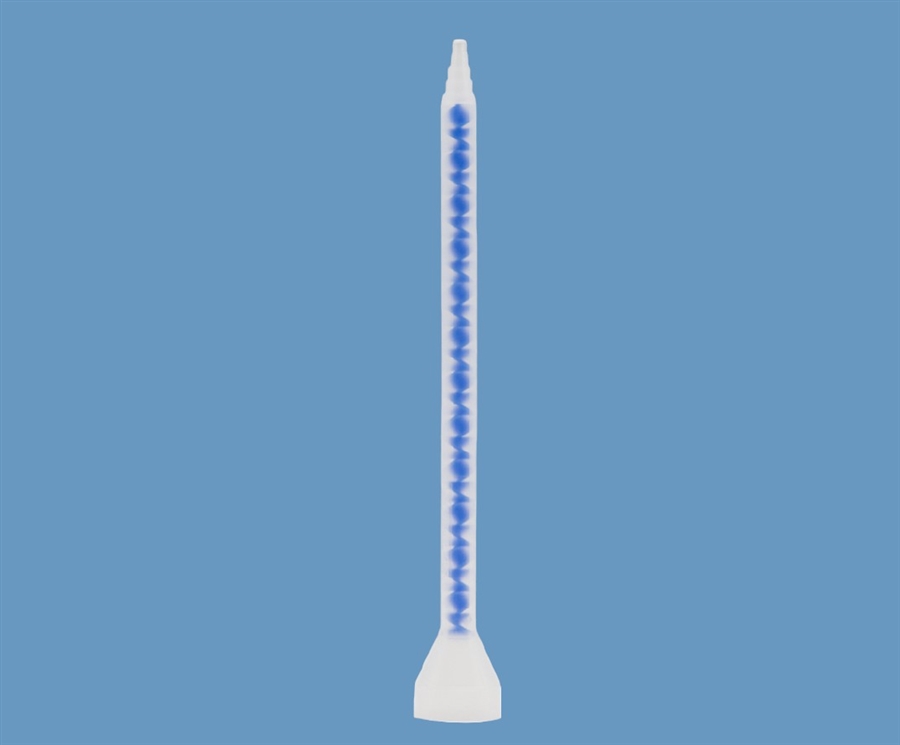

ME-Series (Blue) Static Mixers for Meter-Mixing Systems (Machine Mixers)

Static Mixers attach to high pressure meter, mix, and dispense machines and to dual cartridges. Static mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The 15.9mm diameter bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene. ME 05-24T blue static mixers are used for meter mix machine dispensing of epoxy and other adhesives. The elements are made of polyacetal.

Specification:
ME 05-24T - 102448
Bell Mouth housing size: 15.9mm
Nozzle inner diameter: 5.0mm
Nozzle outer diameter: 8.0mm
Nozzle elements: 24
Nozzle length: 149mm
Nozzle tip outlet: 1.0mm
Volume: 2.3ml
Maximum Pressure: 33 BAR
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac MedMix
Pack Size: 100 Pieces

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard for 200/400ml cartridges or mix machines
Silicone-free plastics
Safe for use to 100 psi
Luer lock nozzle end
Supplied in sealed packs of 50
