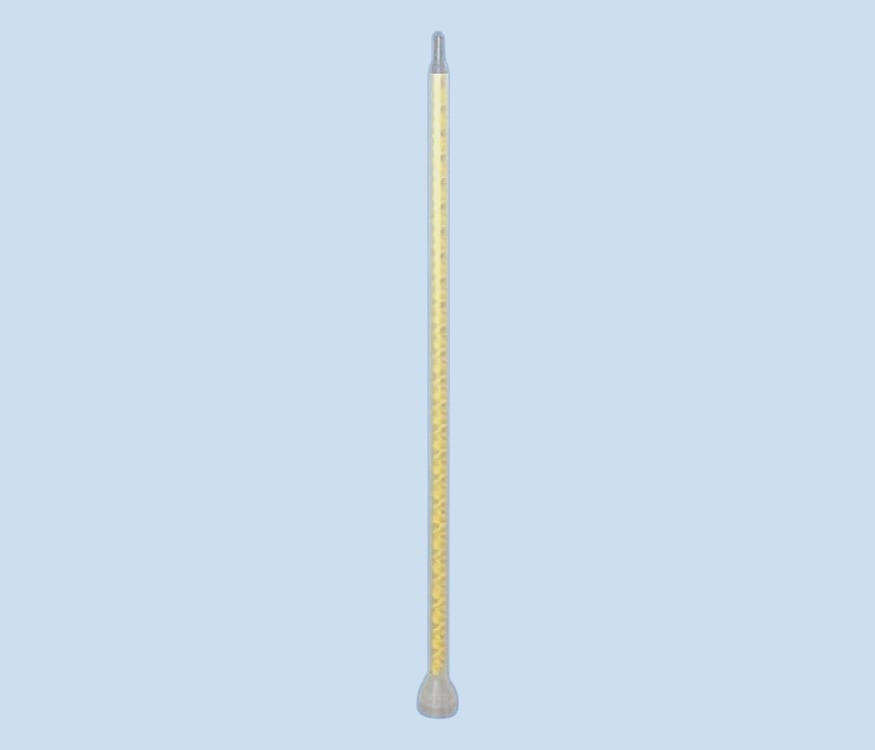

Mix Nozzle 6.4mm ID x 56 EL MS06-56L pk/100
Product Code: MS06-56L
Price: £285.00
Description
MS-Series (Yellow) Static Mixers for Meter-Mix Systems
Static Mixers attach to both meter, mix, and dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene. This version features a luer-lock tip outlet.
Part ID: MS06-56L
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Yellow Elements
Inner Diameter: 6.4mm
Outer Diameter: 11mm
Mixer Length: 392mm
Nozzle Tip Diameter: 1.9mm
No. of Elements: 56
Retaining Method: 7/8"-9 Thread
Material Volume: 35.2ml
Max. Pressure: 30 BAR
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges or mix machines
- Silicone-free Safe for use to 100 psi
- Stepped nozzle end
- Supplied in sealed packs of 50
