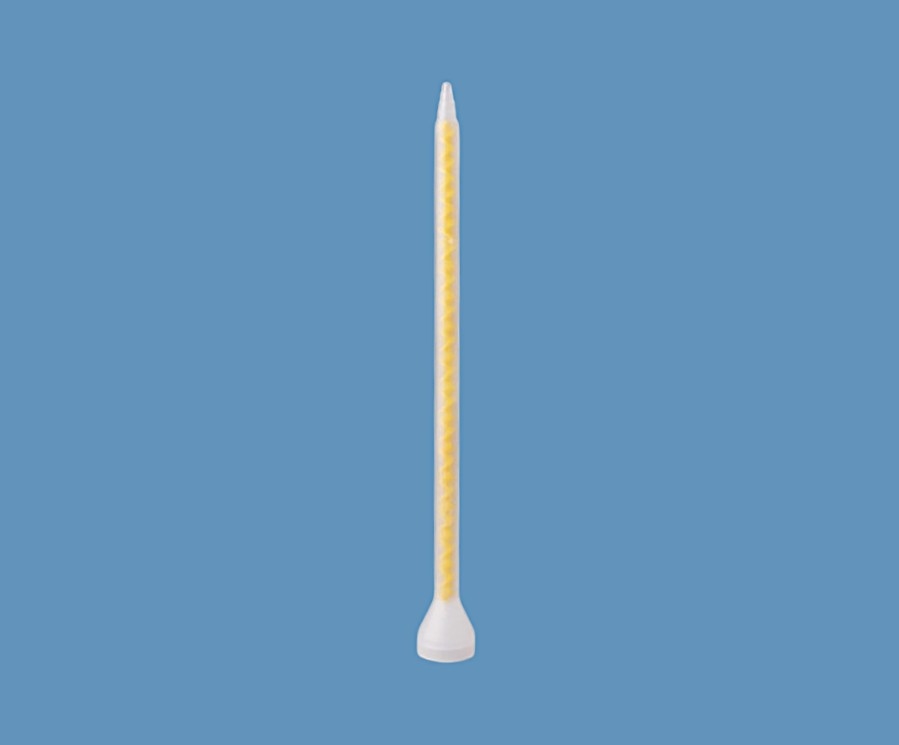

MS-Series (Yellow) Static Mixers for Machine Mixer Systems

Static Mixers attach to both meter, mix, and dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.

Part ID: MS 05-32T - 102504
Material: Polypropylene
Colour: Natural Outer, Yellow Elements
Inner Diameter: 5mm (0.197")
Outer Diameter: 8mm (0.315")
Mixer Length: 188mmm (7.40")
Nozzle Tip Diameter: 1.5mm (0.1")
No. of Elements: 32
Retaining Method: 7/8"-9 Thread
Material Volume: 2.8ml
Max. Pressure: 33 BAR
Commodity Code: 39269097
Brand: Sulzer Mixpac MedMix

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard for 200/400ml cartridges or high pressure mix machines
Silicone-free plastics
Safe for use to 100 psi
Luer lock tip end
Supplied in sealed packs of 50
