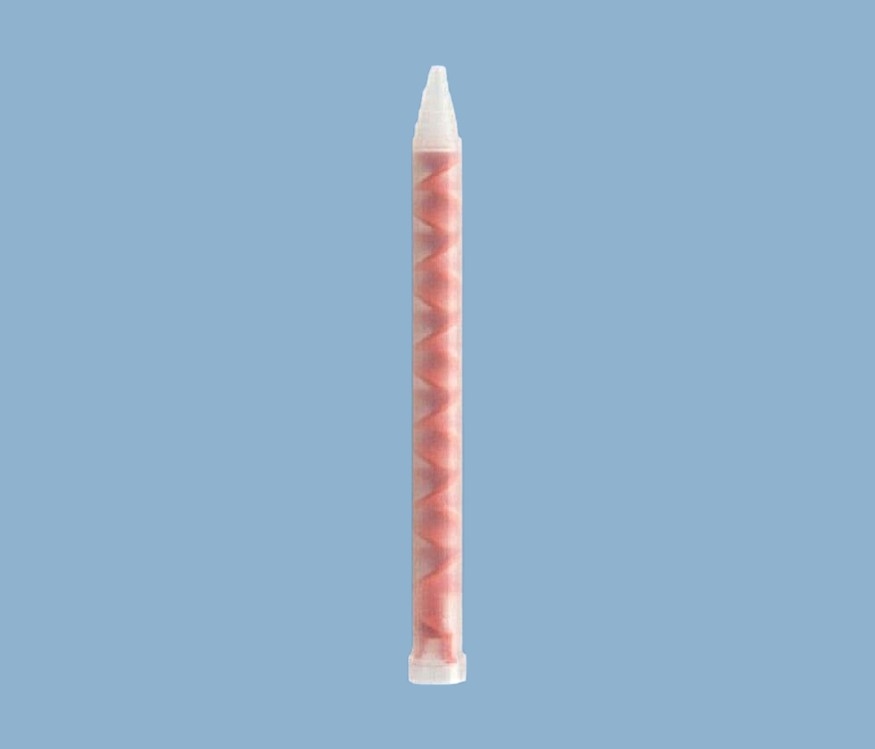

Mix Nozzle 13mm ID x 12 EL MCHX13-12 pk/100
Product Code: MCHX-13-12T
Price: £148.00
Description
FOR USE WITH 200ML AND 400ML DUAL CARTRIDGES 4:1 AND 10:1 RATIO ONLY.
Bell mouth inlet, helical static mixer for 200ml and 400ml dual component epoxy type cartridges 4:1 or 10:1 ratios. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with luer adapter and any luer lock needle tips.
These mixer nozzles are suitable for two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges 4:1 or 10:1. All items are industrial grade safe and silicone free. 13mm ID x 12 mixing elements.
Supplied in a sealed pack of 100 nozzles.
Part ID:MCHX 13-12T
Material: Polypropylene
Colour: Natural Outer, Orange Elements
Inner Diameter: 13mm
Outer Diameter: 17mm
Nozzle Tip Outlet: 4.0mm
Length: 192mm
Retained Volume: 15.5ml
Elements: 12
Retaining Method: 7/8"-9 Thread
Details: Industrial grade, Silicone Free
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Bell mouth inlet, helical static mixer for 200ml and 400ml dual component epoxy type cartridges 4:1 or 10:1 ratios. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with luer adapter and any luer lock needle tips.
These mixer nozzles are suitable for two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges 4:1 or 10:1. All items are industrial grade safe and silicone free. 13mm ID x 12 mixing elements.
Supplied in a sealed pack of 100 nozzles.
Material: Polypropylene
Colour: Natural Outer, Orange Elements
Inner Diameter: 13mm
Outer Diameter: 17mm
Nozzle Tip Outlet: 4.0mm
Length: 192mm
Retained Volume: 15.5ml
Elements: 12
Retaining Method: 7/8"-9 Thread
Details: Industrial grade, Silicone Free
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
