5cc Blue Easy Flow Piston 7050007BLPK pk/50
Product Code: 7050007BLPK
Price: £14.00
Description
Precision
components provide safe and leak free fluid dispensing from syringe barrels.
These pistons wipe the inner walls of the syringe barrel to ensure liquids are
dispensed with mess or material waste. Use with 5cc size 700 and 900 series syringe
barrels on either a pneumatic dispenser or manual syringe gun.
Pistons ensure that the
pressure is evenly spread across the fluid surface to provide consistent
dispensing. Wiper seal pistons prevent dripping and eliminate material waste by
wiping the syringe barrel wall clean as fluid is dispensed. Maximum operating
pressure is 100psi (6.9 bar).
Easy flow pistons are
recommended for most general applications and they ensure no material residue
is left on the syringe barrel walls while dispensing. Supplied with labels and
batch codes.
Our quality products are
supplied in sealed packs to prevent contamination and we hold extensive stocks
of most items. If you have any questions regarding products, pricing or
deliveries, please feel free to contact us.
Part ID: 7050007BLPK
Material: Low
Density Polyethylene (LDPE)
Colour: Blue
For Barrel
Sizes:
Use with 5cc barrels
Height: 10mm
Outer
Diameter:
12.70mm
Commodity Code: 39269097
Brand: TSI
Pack Size: 50

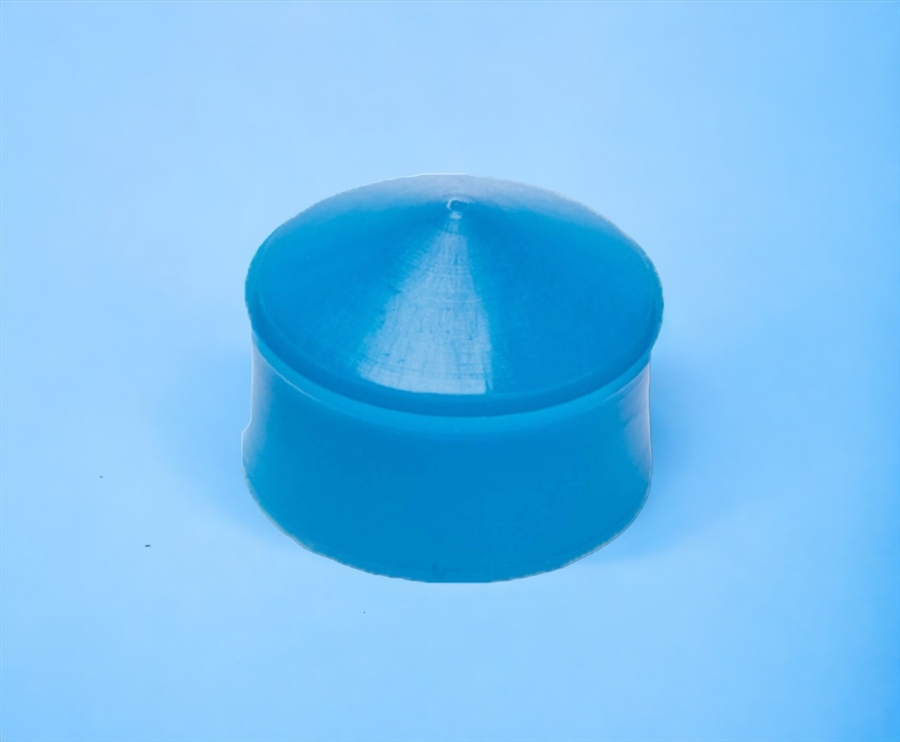

Pistons are made of polyethylene and have dual blades to wipe the adhesive, paste or liquid from inside the syringe barrel as they move down. The blades also act to stop liquids from going past them as they dispense.
Once a syringe has liquid inside, insert the piston and push down on one side. This will allow air to escape and ensures the piston sits directly on the fluid without an air gap. When bottom filling using the syringe barrel filler, the piston is pushed down and moves up as the liquid is fed into the syringe barrel.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free Compatible on 5cc syringe barrels
- Resistant to aggressive fluids and solvents
- Available from stock
- Provides wiper action in syringe
- Supplied in sealed packaging
