Mix Nozzle 8mm ID x 18 EL MCHX 08-18T pk/100
Product Code: MCHX-08-18T
Price: £105.00
Description
FOR USE WITH 200ML AND 400ML DUAL CARTRIDGES 4:1 AND 10:1 MIX RATIO ONLY.

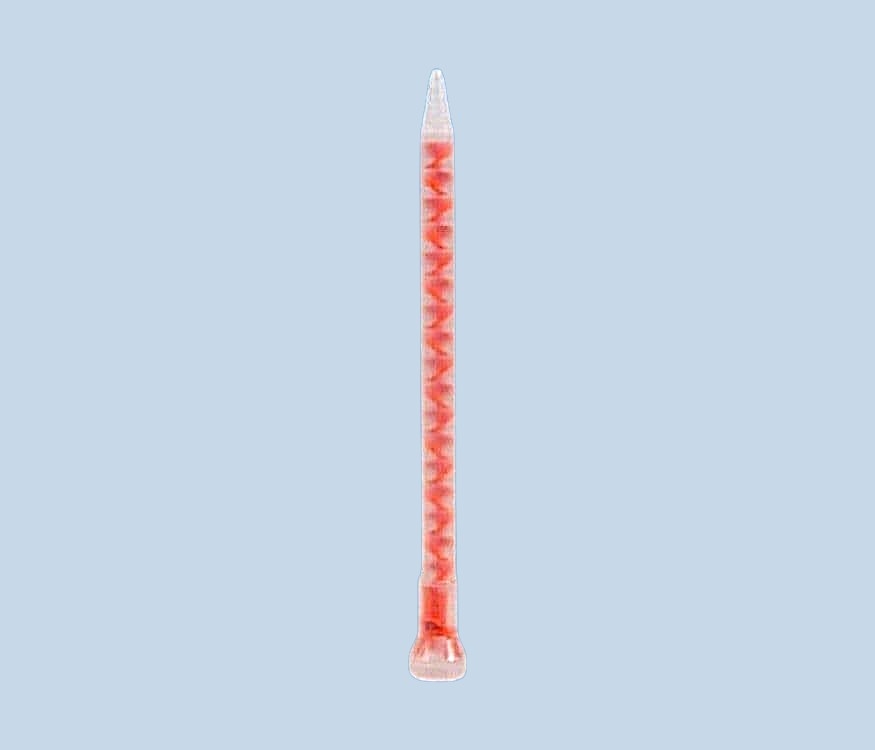

Bell mouth inlet, helical static mixer for 200ml and 400ml dual component epoxy type cartridges 4:1 or 10:1 mix ratios. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with luer adapter and any luer lock needle tips.
These mixer nozzles are suitable for two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges 4:1 or 10:1. All items are industrial grade safe and silicone free. 8mm ID x 18 mixing elements.
Supplied in a sealed pack of 100 nozzles.
Part ID: MCHX 08-18T - 102440
Material: Polypropylene
Colour: Natural Outer, Orange Elements
Inner Diameter: 8mm
Outer Diameter: 12mm
Nozzle Tip Outlet: 2.4mm
Length: 182mm
Retained Volume: 6.70ml
Elements: 18
Retaining Method: 7/8"-9 Thread
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Bell mouth inlet, helical static mixer for 200ml and 400ml dual component epoxy type cartridges 4:1 or 10:1 mix ratios. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with luer adapter and any luer lock needle tips.
These mixer nozzles are suitable for two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges 4:1 or 10:1. All items are industrial grade safe and silicone free. 8mm ID x 18 mixing elements.
Supplied in a sealed pack of 100 nozzles.
Part ID: MCHX 08-18T - 102440
Material: Polypropylene
Colour: Natural Outer, Orange Elements
Inner Diameter: 8mm
Outer Diameter: 12mm
Nozzle Tip Outlet: 2.4mm
Length: 182mm
Retained Volume: 6.70ml
Elements: 18
Retaining Method: 7/8"-9 Thread
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
