CA and UV Adhesive Beading System 1201-2250
Product Code: 1201-2250
Price: £975.00
Description
Liquid and adhesive dispenser designed to allow materials to be handled from up to 5 litre sizes. There is no pouring needed (ie: you can drop a bottle of glue right into the dip-tube tank). Very little clean up is involved with this system and you do not smell the strong fumes of the glue as this is a contained system.
The valve is designed to dispense thin and medium liquids with controlled deposits of glue, with no dripping. The system has two ways to control the deposit: - needle tip size and tank pressure. The pressure on the tank can be adjusted and there is a 0-75 psi regulator gauge.

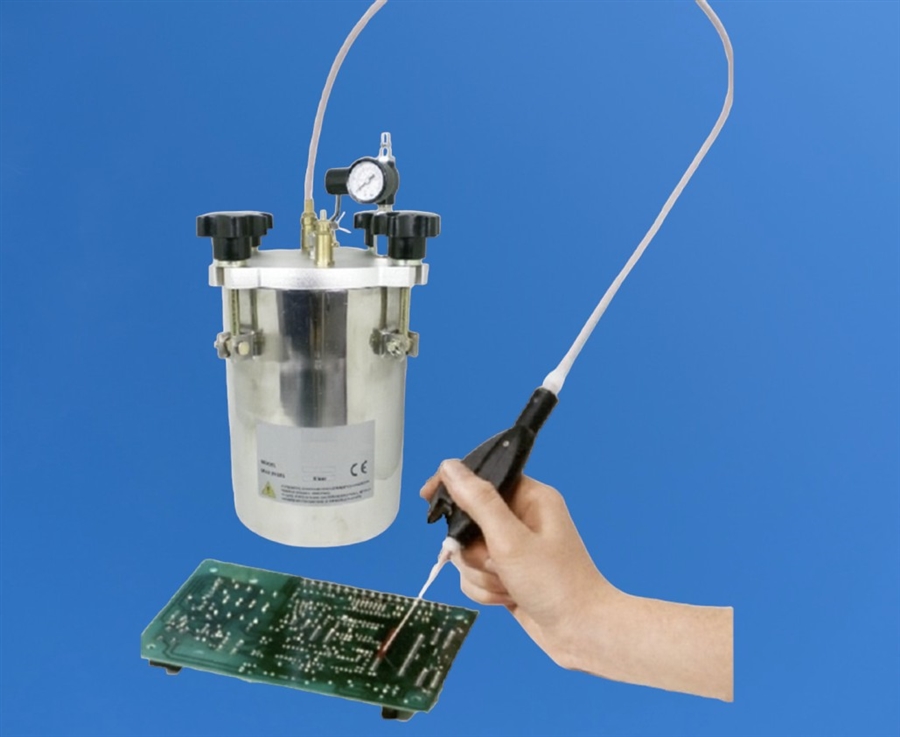

Applying adhesives by hand can be slow and often too much is applied to each part which can create mess, waste and possible damage to products. Or too little adhesive can be applied which creates a weak bond and product failure. With this system, the adhesive bottle is placed directly inside the compact tank unit and fed under very low air pressure down flexible feed tubing to the hand held lever valve.
For CA's, dispensing tips supplied are Teflon lined to prevent rapid clogging of the adhesive. Using Teflon tips allows the operator to dispense without it blocking too quickly in between breaks or them having to replace tips too often. For other liquids, a range of Smooth Flow Tapered, Precision TE Tips and Polypro Flexible Tips are also provided.
This dispensing system will ship with a starter stock of dispensing tips, tip caps and fluid lines. The only requirement for this system is a compressed air supply of 60-75 psi. We recommend that the air supply is filtered against moisture if using reactive adhesives such as Cyanoacrylates. We supply low cost 5-micron filters (part TSD800-6).
Part ID: 1201-2250
Tank Unit: 5 Litre size
Time Range: n/a - manual control via lever
Cycle Rate: n/a - manual control via lever
Minimum Shot Size: n/a - manual control
Viscosity Range: 1-45,000 CPS approx.
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- System ideal for handling CAs
- Tips and tubes will not clog
- Quick attach luer lock fluid lines
- Simple hand lever control
- Pressure pot with adjustable regulator and gauge
- Includes all parts to use straight out of the box
