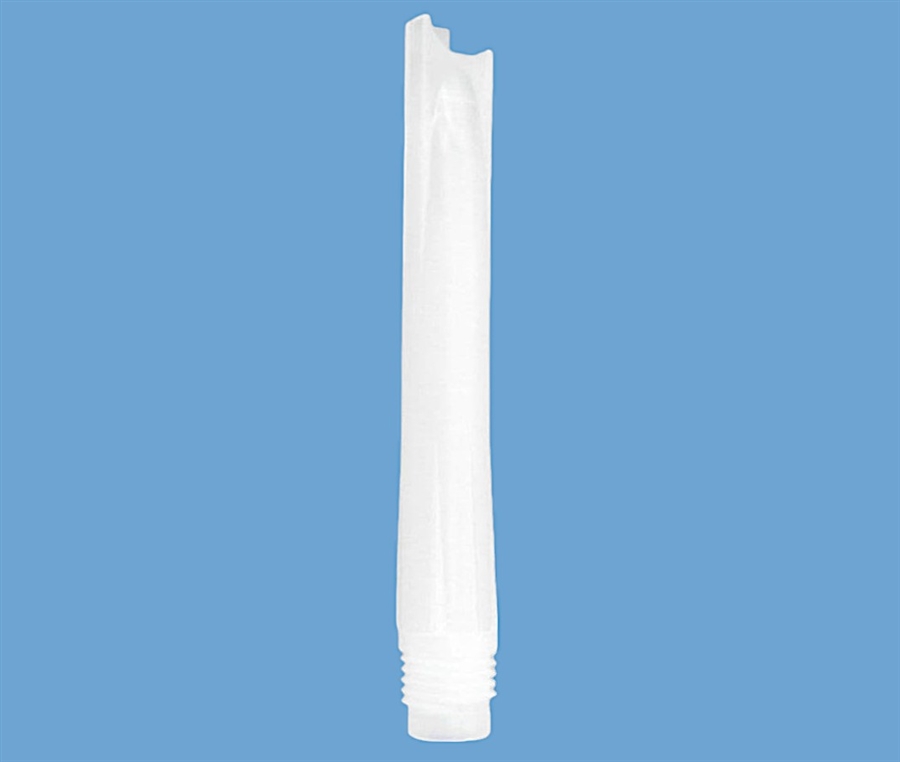

Adhesive Dispensing TS3106 Fillet Nozzle for glue, silicone & sealants. 1" wide spread. 1/4" NPT thread

Description

Spreader nozzles dispense material over a wider area whereas fillet nozzles consistently apply sealant fillets over lap joints. A moulded step is incorporated into the fillet nozzles to align them along the lap joint. The result is perfectly formed fillet. Maximum operating pressure 100psi (6.9bar).Moulded from natural polyethylene and have 1/4'' NPT male threads to fit all industry cartridges or equivalent.. Supplied in a pack of 50 pieces.

Part TSD931-296 is required if using with pre-filled 310ml silicone and sealant caulk tubes that feature and external thread nipple to cut. Nozzles are fully compatible with most fluids, adhesives, pastes and gels and useful for high viscosity pastes, sealants, silicones, mastics, solder pastes and compounds.

MPN: TS3106PK
Material: Medium Density Polyethylene (MDPE)
Colour: Natural
Thread Size: 1/4" NPT Male
Length: 4.0" - 101.6mm
Size: 3/8" (9.52mm) x 1/8" (3.2mm) Opening
Rating: Safe for use to 100 psi
Details: Industrial G/ Silicone Free
Commodity Code: 84679200
Brand: TSI

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard 1/4" NPT thread
Silicone-free Safe for use to 100 psi
Can be cut to suit application
Use on cartridges or valves
Supplied in sealed packs

Fillet Lap Nozzle 4" L 3/8" x 1/8" Right Step TS3106-50

Fillet Lap Nozzle 4" L 3/8" x 1/8" Right Step TS3106-50
