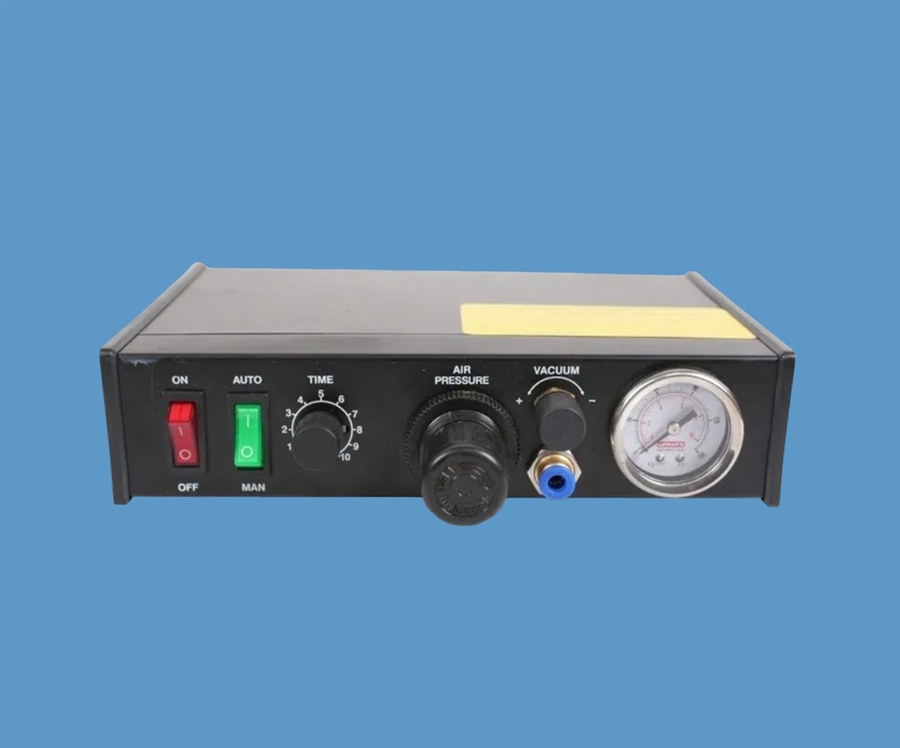

Analog Timed Dispenser 0-100 psi Model ADL100
Product Code: ADL100
Price: £179.50
Description
Liquid Dispenser with Analog Timer, Vacuum Suck-back and Steady Mode
The ADL Model 100 is a cost-effective pneumatic syringe barrel dispenser. Its light weight and compact size makes this the ideal bench top dispensing solution for all your gluing, solder paste application and most other materials viscous or not. Its simplified construction and operation makes it easy for even someone that has never used a dispenser before. The unit comes with two modes; manual/pre-set timer.
By setting the timer, repeat deposits can be made from small dots to larger amounts. Press the steady mode and it will make continuous beads.
Features vacuum suck-back to prevent drips of watery liquids. Supplied complete with a syringe barrel assortment, needle tip kit assortment, adapter assembly, foot switch, power cord, user guide and CE certification. Covered by a 1 year warranty. This classic designed benchtop dispenser is simple to use and operate and we offer full technical support for setting up.
This compact dispenser sits on the bench and requires an air input from any compressor or factory mains supply. It comes with the airline hose and fittings kit to make air connection easy. Ready to use out of the box.
Each dispenser is supplied with (5) syringe barrels and (5) pistons in the size of your choice, a 3ft. long air adapter assembly, (1) reusable barrel end cap seal, (1) reusable luer tip cap seal and (50) assorted dispensing tips including smooth flow tapered and general purpose 1/2" long. SELECT THE SYRINGE BARREL SIZE REQUIRED.
Part ID: ADL100
Timer: 0.01 - 18 seconds
Output Pressure: Up to 100 psi
Input Pressure: 80-100 psi
Size: 235 x 192 x 63 mm
Weight: 1.47 kg
Input Voltage: 220 V AC
Warranty: 1 Year
Cycle Rate: Up to 600 cycles/minute
Timing Repeatability: +/- 0.1%
Meets or Exceeds: CE Certified
Commodity Code: 84248940
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Small footprint takes up less space
- Integrated air pressure regulator
- Powerful vacuum suck back stops drips
- Timer for repeat deposits or beads
- 1 Year Warranty
- CE Certified
- Footswitch activation
- Robust build and design
- Supplied with range of dispensing components
