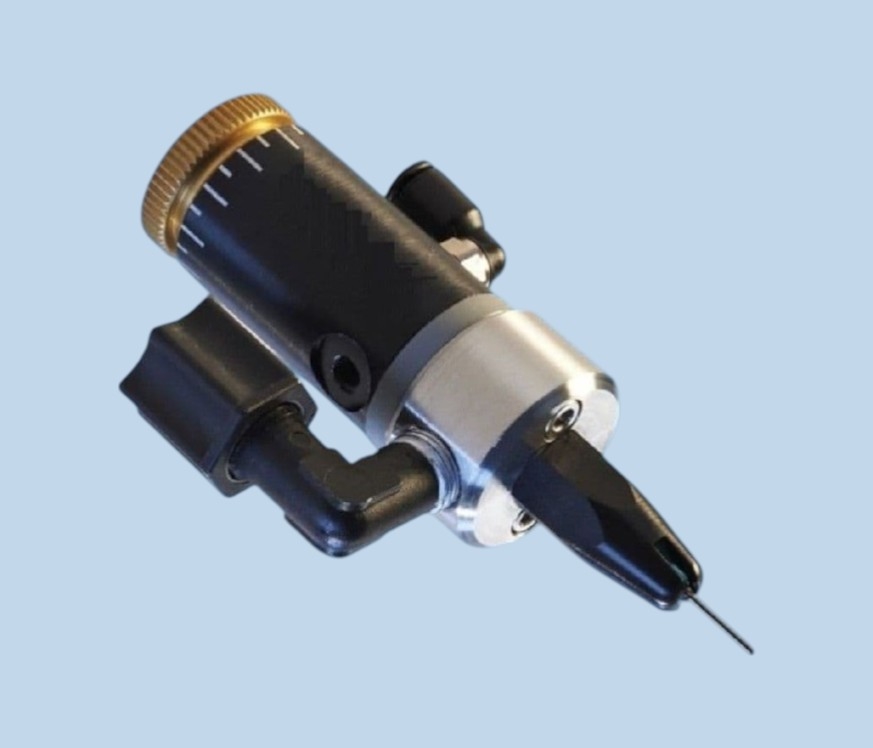

Air Operated Diaphragm Valve TS5622VU-DVD
Product Code: TS5622VU-DVD
Price: £999.00
Description
Diaphragm valves are designed to dispense low to medium viscosity materials with precision accuracy over a wide range of shot and bead sized down to a fraction of a micro liter. An internal spring return makes the valves fully adaptable for use with our time/pressure controllers. A short opening stroke provides extremely fast, positive shut-off. An external stroke control adjustment makes it easy for the operator to fine tune shot sizes. The compact design allows for mounting flexibility and easy integration into automated applications.
A stainless steel fluid housing is compatible with a variety of chemicals; especially UV cure adhesives, resins and lacquers used in the manufacture of DVDs and CDs. The valves are low maintenance; easy-to-use, easy-to-maintain with user replaceable spare parts.
Product Comprises of:
- Mounting bracket kit
- Valve air hose
- Luer lock fluid line
- Fluid inlet fittings - 1/4'' compression and Luer lock type
- Dispensing tip selection pack
Key Features and Benefits:
- Seal-less design – excellent moisture sensitive resistance
- Stainless steel version features excellent fluid compatibility for UV sensitive fluids
- Tip cap design aids bent tip attachment
- Compact design
- Vertical mounting options for machine integration
Size: 76mm L x 27mm Dia..
Weight: 118g (0.26lb)
Viscosity Range: 1 - 50,000 CPS
Repeatability: ±0.30%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 3000ml/minute @ 100 psi
Min Shot Size: 0.0075 cc/ ml
Max Fluid Pressure: 70 psi ( 5 Bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/4-28 UNF
Mounting: 10-32 UNF
Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for resins, UV cure and lacquers
- High precision solution supplied complete
- Repeat dots, lines or potting of most liquids
- Adjustable stroke control for fine tuning of flow
- Syringe feed, cartridge feed or pressure pot
- Supplied with fluid lines and tip kit
- Easy bench mount, machine mount or robot mount
- Simple to control using TS500R, TS250 or TS350
