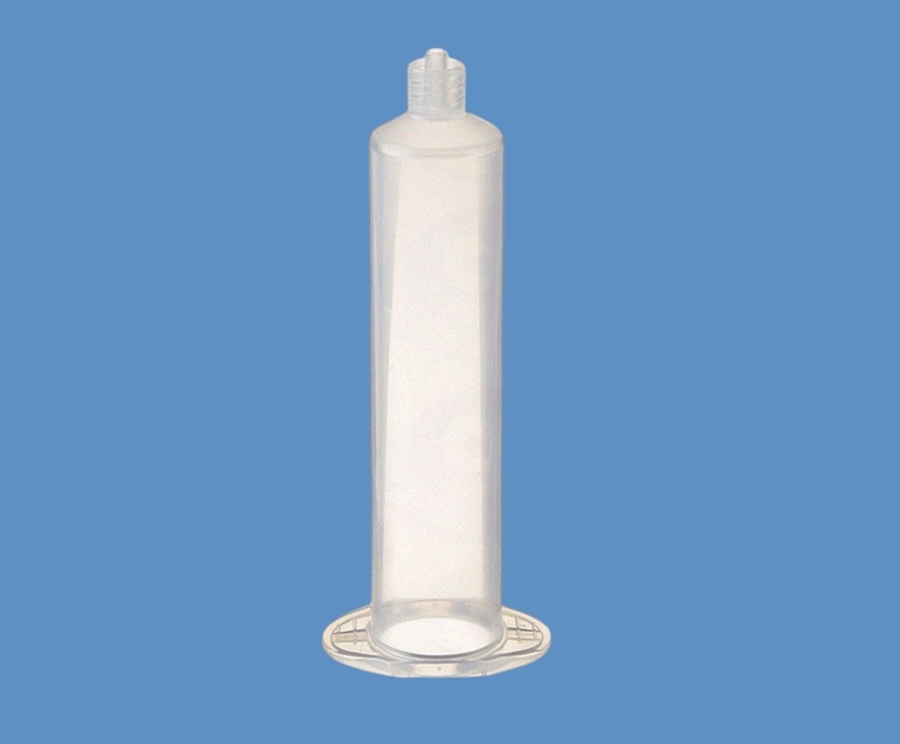

30cc 5601004 Silicone Free Syringe Barrel Clear pk/10
Product Code: 5601004
Price: £5.00
Description
High performance dispensing syringe barrels that are silicone and chloride-
free and designed to work with dispensing equipment - either manually or
on a pneumatic dispenser. The syringe barrels are made from low
friction polypropylene to ensure accuracy, repeatability and
productivity.
Features a double Helix Luer lock for secure dispense tip attachment. Supplied in sealed packs. Natural (clear) colour.
Plastic wiper pistons are available for all barrel sizes as well as end caps and adapter assemblies. Use a piston for thicks pastes, gels, etc. to prevent air pushing through materials inside the barrel. Use a piston for watery liquids to improve flow. Maximum operating pressure is 100 psi (6.9bar).
Material High Density Polypropylene (HDPP)
Volume Capacity 30cc (30ml) Total
Overall Length 4.66" - 118.36mm
Outer Diameter 0.99" - 25.27mm
Inner Diameter 0.89" - 22.63mm
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Colour Natural (Clear)
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features a double Helix Luer lock for secure dispense tip attachment. Supplied in sealed packs. Natural (clear) colour.
Plastic wiper pistons are available for all barrel sizes as well as end caps and adapter assemblies. Use a piston for thicks pastes, gels, etc. to prevent air pushing through materials inside the barrel. Use a piston for watery liquids to improve flow. Maximum operating pressure is 100 psi (6.9bar).
Material High Density Polypropylene (HDPP)
Volume Capacity 30cc (30ml) Total
Overall Length 4.66" - 118.36mm
Outer Diameter 0.99" - 25.27mm
Inner Diameter 0.89" - 22.63mm
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Colour Natural (Clear)
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free plastics
- Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment
- Zero draft inner walls for precision
