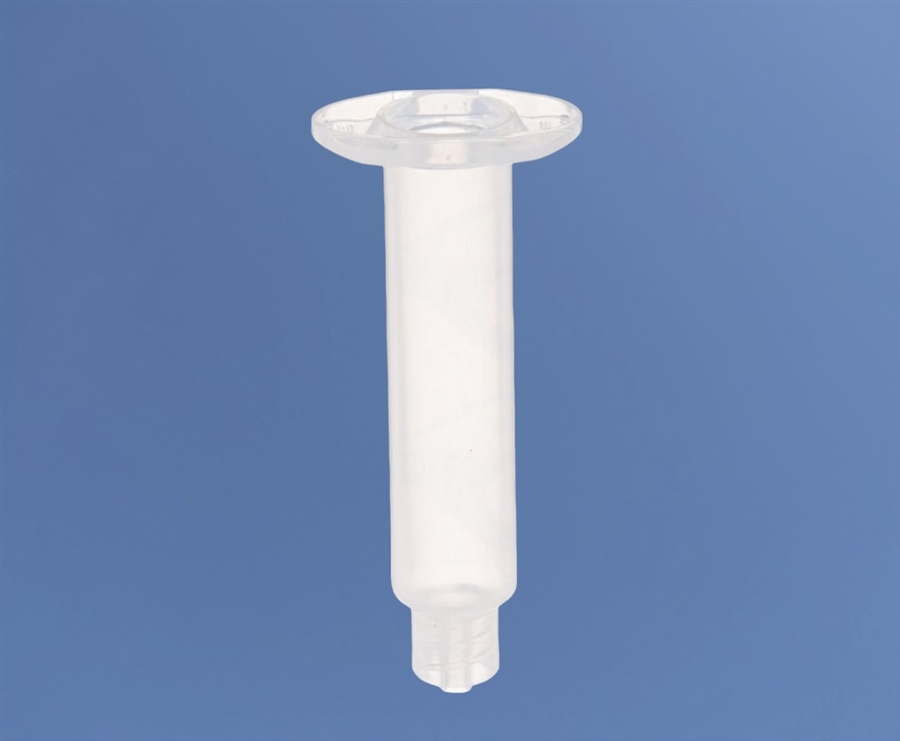

5cc Fisnar 5601001 Syringe Barrel Clear pk/10
Product Code: 5601001
Price: £3.50
Description
High performance dispensing syringe barrels that are silicone and chloride-
free and designed to work with dispensing equipment - either manually or
on a pneumatic dispenser. The syringe barrels are made from low
friction polypropylene to ensure accuracy, repeatability and
productivity. Features a double Helix Luer lock for secure dispense tip attachment. Supplied in sealed packs. Natural (clear) colour.
Plastic wiper pistons are available for all barrel sizes as well as end caps and adapter assemblies. Use a piston for high viscosity pastes, gels, etc. to prevent air pushing through materials inside the barrel. Use a piston for watery liquids to improve flow and reduce fumes. Maximum operating pressure is 100 psi (6.9bar).
Material High Density Polypropylene (HDPP)
Volume Capacity 5cc (5ml)
Total Overall Length 3.05" - 77.47mm
Outer Diameter 0.58" - 14.73mm
Inner Diameter 0.50" - 12.70mm
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Colour Natural (Clear)
Mfg Part 5601001
Commodity Code: 39269090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Plastic wiper pistons are available for all barrel sizes as well as end caps and adapter assemblies. Use a piston for high viscosity pastes, gels, etc. to prevent air pushing through materials inside the barrel. Use a piston for watery liquids to improve flow and reduce fumes. Maximum operating pressure is 100 psi (6.9bar).
Material High Density Polypropylene (HDPP)
Volume Capacity 5cc (5ml)
Total Overall Length 3.05" - 77.47mm
Outer Diameter 0.58" - 14.73mm
Inner Diameter 0.50" - 12.70mm
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Colour Natural (Clear)
Mfg Part 5601001
Commodity Code: 39269090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment
- Zero draft inner walls for precision
