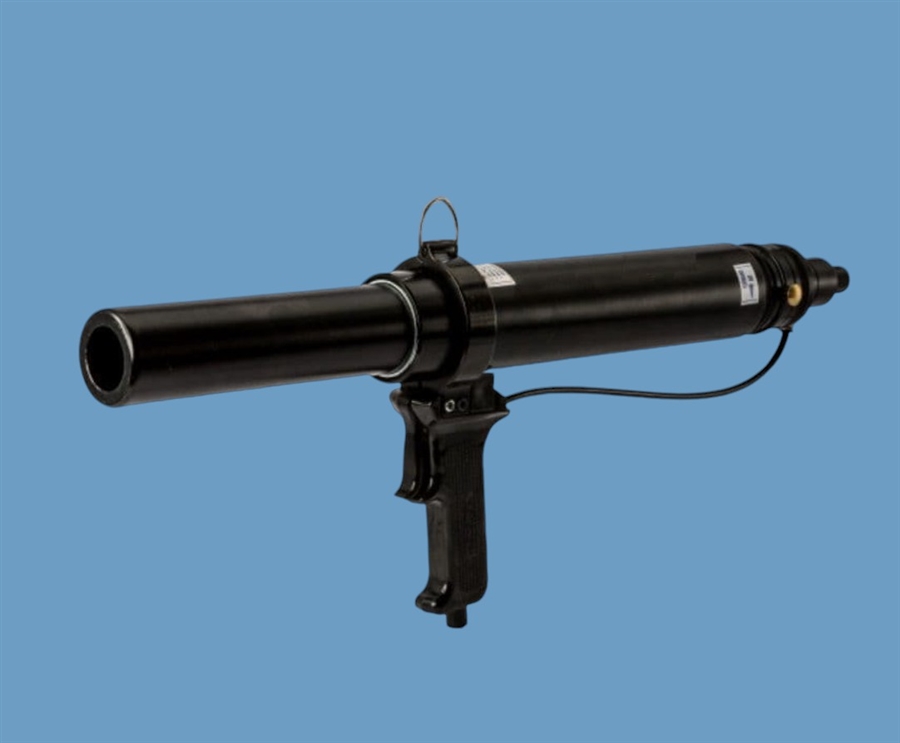

110A-10 10oz 310ml Pneumatic Sealant Cartridge Applicator Gun Adhesive Dispensing

Description

Rod driven pneumatic silicone/ sealant applicator gun. Provides more thrust power by a rod that pushes against the cartridge plunger rather than just air filling the silicone tube. Very useful for viscous materials and for a more controlled dispensing solution. Standard air caulk guns force air onto the silicone tube plunger to dispense. This gun forces a rod onto the silicone tube plunger and does not fill the area with air. A button is pressed to retract the rod when changing over cartridge tubes.

A robust built pneumatic cartridge gun with metal threaded retainer and pistol grip. Suited to controlled lines or potting of most adhesives, fluids, sealants, RTV, grease, gels, long cure or single part epoxies, mastics, silicones and potting compounds. For 10oz size (310ml approx) or 1/10 gallon.

This gun features a built-in adjustable regulator and a hook ring to accept a counter balance. These gun uses 10oz (310ml) size silicone/ sealant type cartridges or our 10oz cartridges. Can also be used with 290ml coaxial epoxy cartridges.

Part ID: 110A-110
Nominal Thrust: 490 lbs. @ 100 PSI.
2.5" Cylinder provides extra power for viscous materials
Ideal for Universal Cartridge Systems
True Air Regulator Controls Flow
Lightweight, Aluminum Barrel
Safety Valve in Handle Air Dump Valve Stops Flow Instantly
Reverse Air Quick Disconnect Nipple
Construction: Stainless Steel/ Aluminium/ Nylon
Colour: Silver/ black
Attachment: Threaded retainer to handle
Max Air Pressure: 100 psi
Air connection: 1/4" male thread
Warranty: 1 Year

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

High pressure to 100 psi with 490 lbs. thrust
Air exhaust releases air and reduces drips
Universal quick attach metal retainers
Mounting ring
Quick cartridge insertion
Adjustable air regulator

310ml Rod Driven Cartridge Gun 110A-10

310ml Rod Driven Cartridge Gun 110A-10
